Description

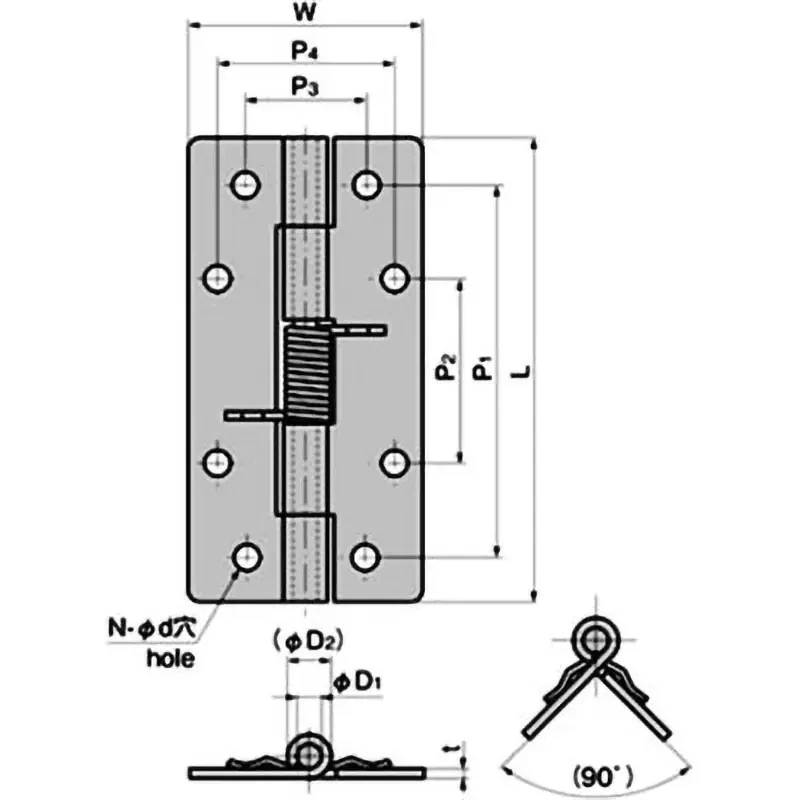

Dimension D1 (mm): 5
Dimension D2 (mm): 9.5
Dimension L (mm): 100
Dimension N (mm): 8
Dimension P1 (mm): 80
Dimension P2 (mm): 40
Dimension P3 (mm): 26
Dimension P4 (mm): 38
Dimension W (mm): 50
Dimension d (mm): 5.3
Dimension t (mm): 2
Applications: Ships, Vehicles, Food Machinery
Material: Cold Rolled Stainless Steel Plate (SUS304)
Weight (g): 110
Surface Finish: Glossy Barrel Polishing
Takigen Code: 11282
Rated Torque (cN*m): 90 degrees: 79.8, 180 degrees: 54.1
Excellent corrosion resistance due to stainless steel.

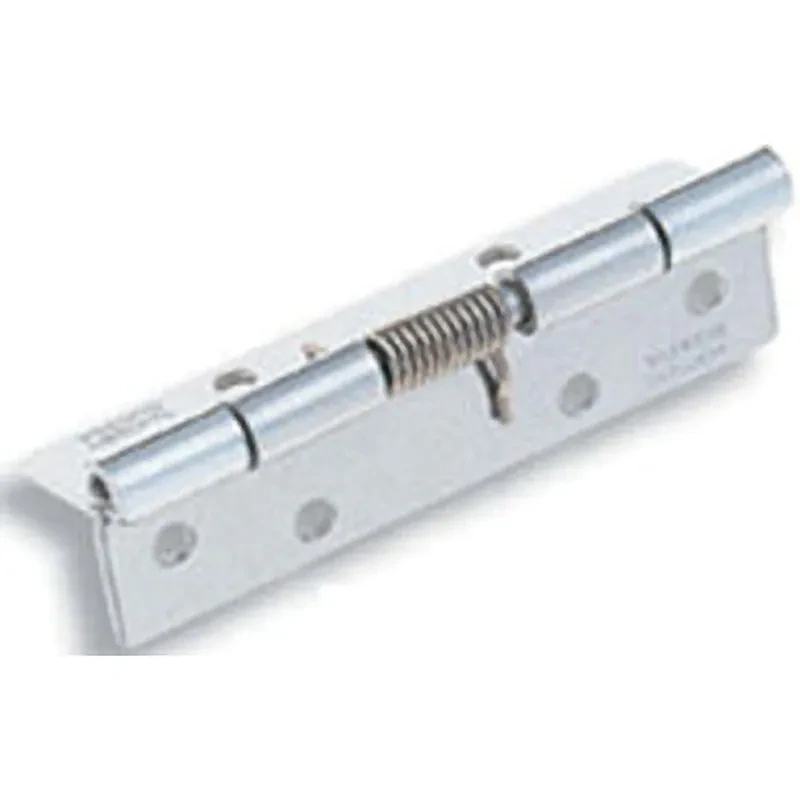

This is a strong spring pressure type of B-1046.
