Description
Dimension A (mm): 279.4
Dimension B (mm): 457.2
Dimension C (mm): 558.8
Dimension D (mm): 288.9
Dimension E (mm): 454.0
Dimension F (mm): 565.1
Dimension G (mm): 577.8
Member Length L (mm): 609.6

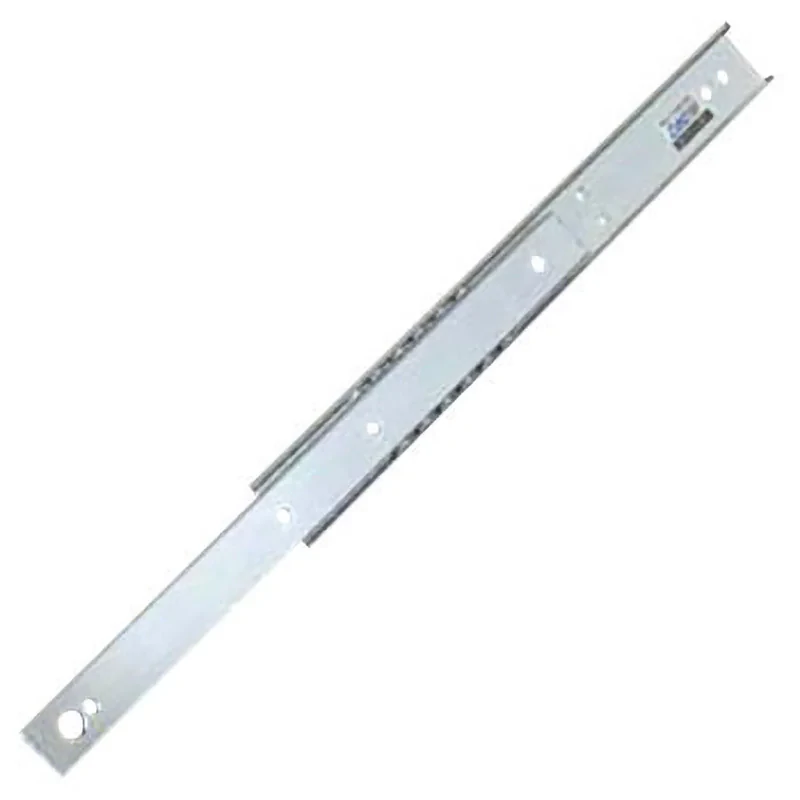

Type: Slide Type
Stroke (mm): 431.8
Rail Length (mm): 609.6
Rated Load (N): 310 (set)
Number of Stages: 2
Material: (Rail) SPCC
Surface Treatment: (Rail) Electro-Galvanized
Material: (Retainer) SECC
Material: (Ball) 3/16 inch Carbon Steel Ball
Mounting Screw: M4 Bind or Truss Small Screw
Weight (kg/pair): 1.2
Lubricant: Shin Nippon Oil Epinock Grease AP(N)
High Strength, High Durability!
Adoption of Tough Copper Plate Provides Sufficient Durability for Long-Term Use.
Smooth Linear Motion!
Achieves Smooth Linear Movement without Sticking.
Thin and Compact!
The Cross-Section Shape is Designed to be as Thin as Possible while Maintaining Strength, Minimizing Side Space during Installation.
Maintenance-Free!
The Rail is Treated with a Surface Treatment, Allowing for Maintenance-Free Long-Term Use.
Ultra Low Price, Easy Installation!
Can be Used with Bolt-On Only, Significantly Reducing Design, Processing, and Assembly Work Hours on the Installation Side.
