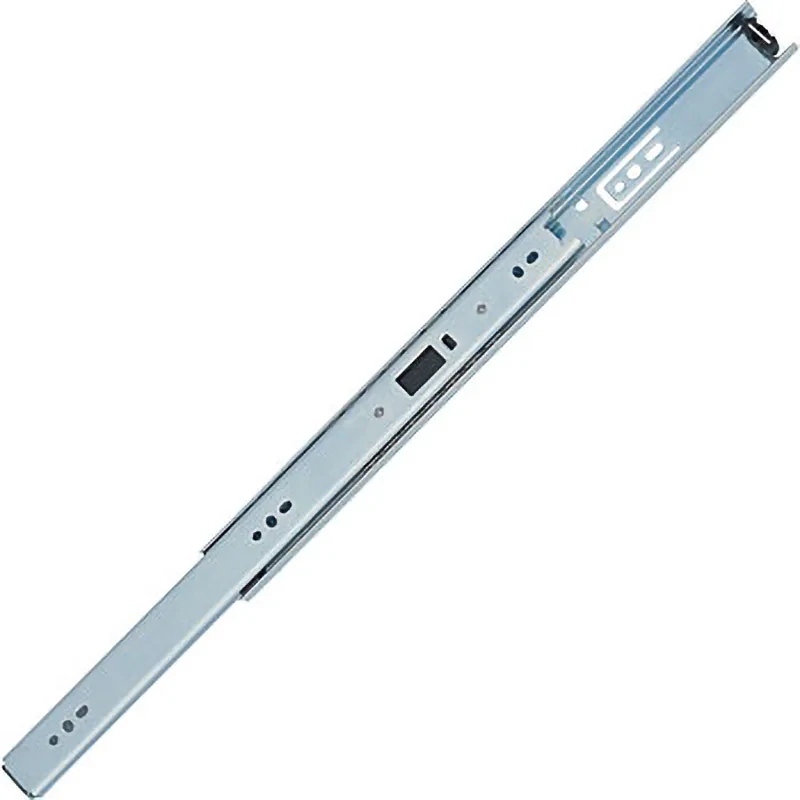

Description
Rail Length (mm): 550
Dimension A (mm): 128
Dimension B (mm): 288
Dimension C (mm): –
Dimension D (mm): 483
Dimension E (mm): 224
Dimension F (mm): 352
Dimension G (mm): 448
Specification: Economy Version
Material: Steel
Stroke (mm): 413
Height (mm): 35.3
Weight (g): 590
Type: Slide Type
Number of Steps: 2
Finish: (Rail) Glossy Chromate Treatment
Movement Distance (mm): 413
Weight (kg/Pair): 1.17
Rated Load (N): 294/Pair
Recommended Screw: M4 Bind Screw or M4 Truss Screw
Width W (mm): 12.7
Material: (Rail) Steel
RoHS Directive (10 Substances Compliance): Compliant
Surface Treatment: (Rail) Glossy Chromate Treatment (Trivalent Chromium)
The effect of the cushion block at the mounting part allows for smooth sliding even with slight deformations of the cabinet.
