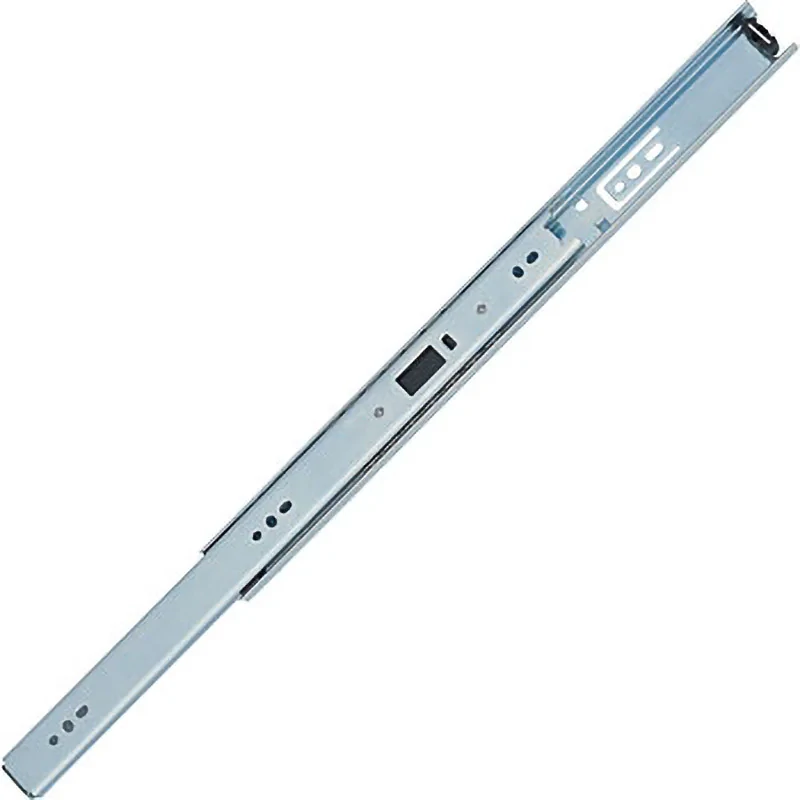

Description
Rail Length (mm): 250
Dimension A (mm): –
Dimension B (mm): –
Dimension C (mm): –
Dimension D (mm): 183
Dimension E (mm): –
Dimension F (mm): –
Dimension G (mm): –
Specification: Economy Version
Material: Steel
Stroke (mm): 153
Height (mm): 35.3
Weight (g): 270
Type: Slide Type
Number of Stages: 2
Finish: (Rail) Glossy Chromate Treatment
Movement Distance (mm): 153
Weight (kg/Pair): 0.54
Rated Load (N): 245/Pair
Recommended Screw: M4 Bind Screw or M4 Truss Screw
Width W (mm): 12.7
Material: (Rail) Steel
RoHS Directive (10 Substances Compliance): Compliant
Surface Treatment: (Rail) Glossy Chromate Treatment (Trivalent Chromium)
The effect of the cushion block at the mounting part allows for smooth sliding even with slight deformation of the cabinet.
