Description
Dimension B1(mm): 62;
Dimension B2(mm): 13;
Dimension d2(mm): 80;
Bore diameter of the shaft hole d1 (mm): 55;
Purpose: To fix the shaft;

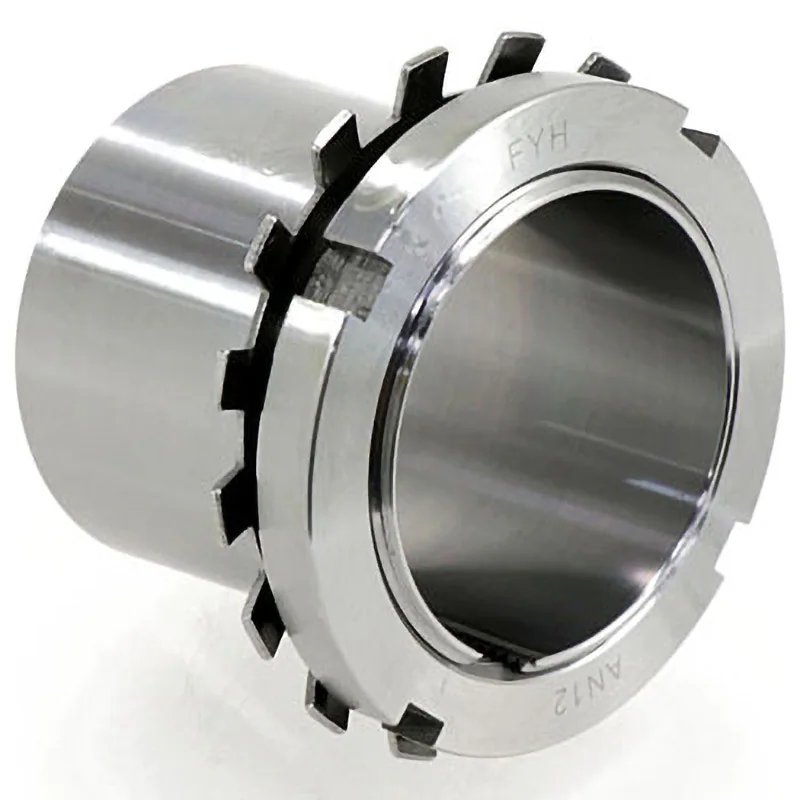

Type: Adapter;
Type: H;
Suitable for: Sleeve A2312X;
Compliant with RoHS Directive (corresponding to 10 substances);
Suitable for: bearings UK212, UKP212, UKF212;
The nut to be used: AN12;
The washer to be used: AW12X
