Description
Dimension B1(mm): 43;
Dimension B2(mm): 9;
Dimension d2(mm): 52;
Bore diameter of the shaft hole d1 (mm): 30;
Purpose: To fix the shaft;

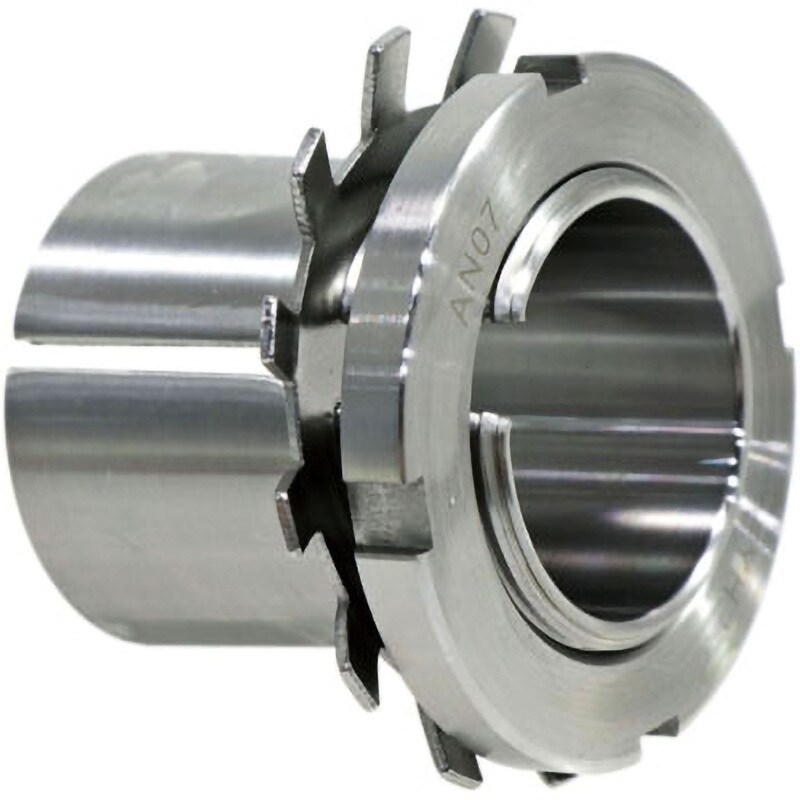

Type: Adapter;
Type: H;
Suitable for: Sleeve A2307X;
Compliant with RoHS Directive (corresponding to 10 substances);
Suitable for: bearings UK207, UKP207, UKF207;
The nut to be used: AN07;
The washer to be used: AW07X
