Description
Inner diameter d (mm): 40;
Outer diameter D (mm): 80;
Width B (mm): 18;
Chamfer dimension r (mm): 1.1;
Mass (g): 366;
Material: (Main body) High carbon chromium bearing steel;
Internal clearance preload symbol: CM;
Grease mark: 5K (Multemp SRL, Kyodo Yushi Grease) ;
Compliant with RoHS Directive (corresponding to 10 substances);
Basic dynamic load rating Cr (N): 29100;
Basic static load rating Cor (N): 17800;
JIS grade: 0;
Shield shape: Double – sided shielded type;
Load direction: Radial;
Outer ring type: Flat;

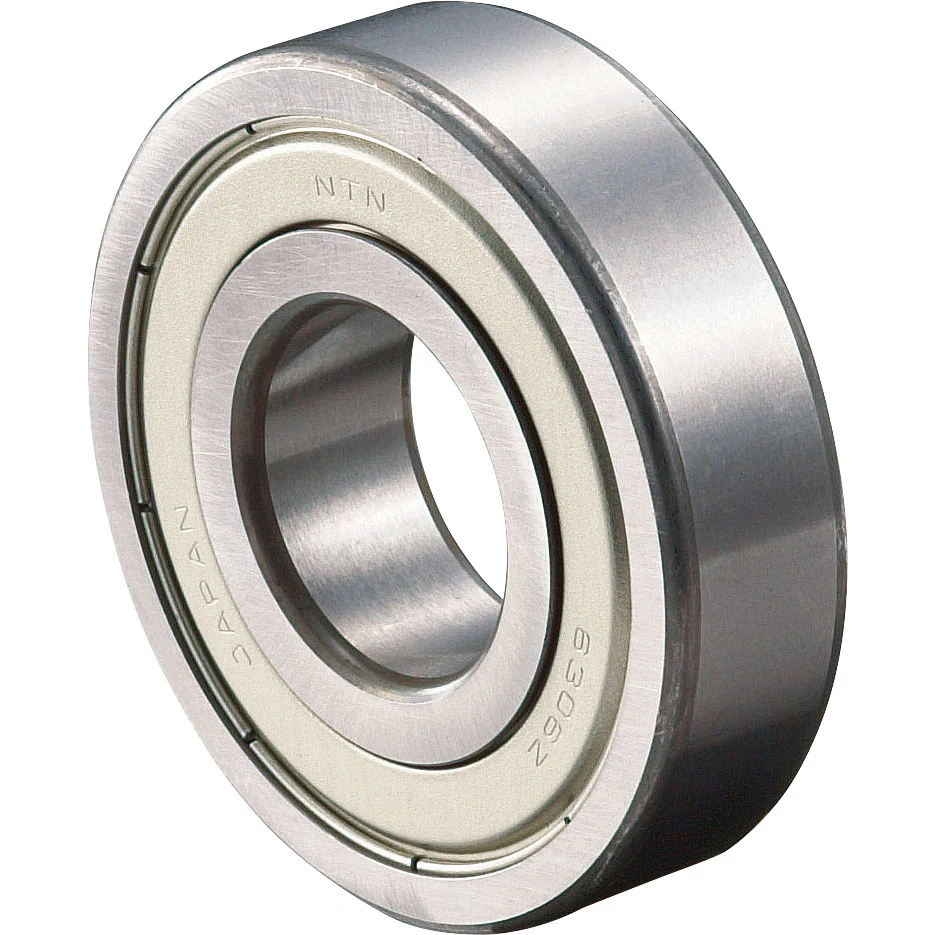

Raceway ring shape: Deep groove ball bearing;
Number of raceway ring rows: Single row;
Rolling element Material: High carbon chromium bearing steel;
Allowable rotational speed (/min) Grease lubrication: 8700;
Bearing series: 6200
