Description
Inner diameter d (mm): 17
Outer diameter D (mm): 40
Width B (mm): 12
Material: (Main body) High carbon chromium bearing steel
Dimension a(mm): 9.7
Chamfer dimension r (mm): (minimum)1
Dimension c (mm): 11
ThicknessT(mm): 13.25
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 9500
Allowable rotational speed (/min [r.p.m]) Oil lubrication: 13000
Basic dynamic load rating Cr (N): 20100
Basic static load rating Cor (N): 19900
JIS grade: 0
Shield shape: Open type
Load direction: Radial
Outer ring type: Flat

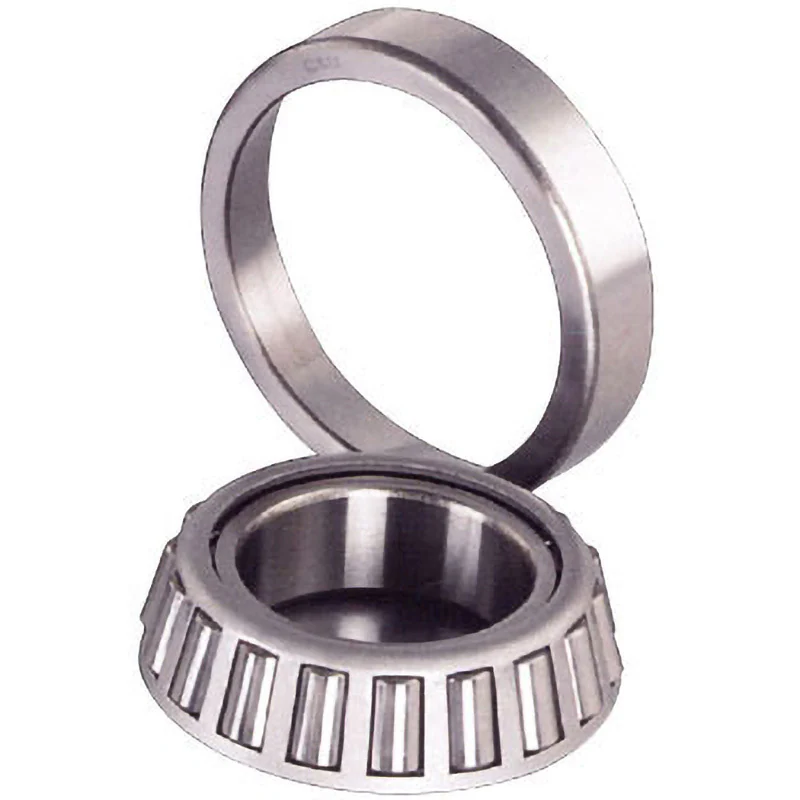

Raceway Ring Shape: Tapered Roller Bearing
Number of raceway ring rows: Single row
Rolling element Material: High carbon chromium bearing steel
