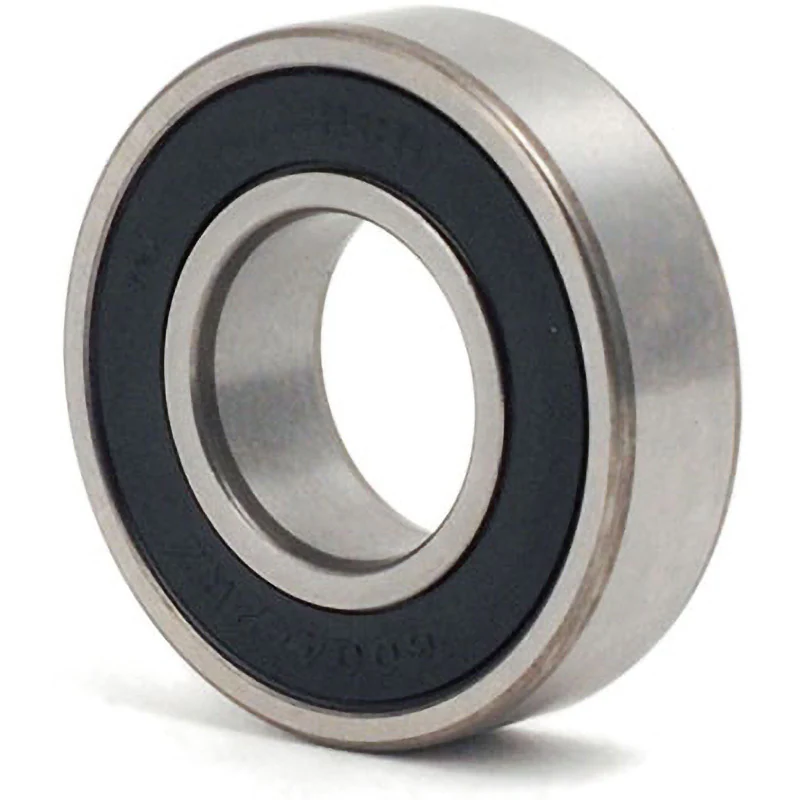

Description
Inner diameter d (mm): 20
Outer diameter D (mm): 42
Width B (mm): 12
Chamfer dimension r (mm): 0.6
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 18000
Material: (Main body) High carbon chromium bearing steel
Basic dynamic load rating Cr (N): 9400
Basic static load rating Cor (N): 5050
JIS grade: 0
Shield shape: Double-sided non-contact rubber seal type
Load direction: Radial
Outer ring type: Flat
Raceway ring shape: Deep groove ball bearing
Number of raceway ring rows: Single row
Rolling element Material: High carbon chromium bearing steel
Bearing series: 6000
