Description
Inner diameter d (mm): 55
Outer diameter D (mm): 90
Width B (mm): 18
Chamfer dimension r (mm): 1.1
Allowable rotational speed (/min [r.p.m]) Grease lubrication: 7700
Material: (Main body) High carbon chromium bearing steel
Basic dynamic load rating Cr (N): 28300
Basic static load rating Cor (N): 21200
JIS grade: 0
Shield shape: Double-sided non-contact rubber seal type
Load direction: Radial
Outer ring type: Flat

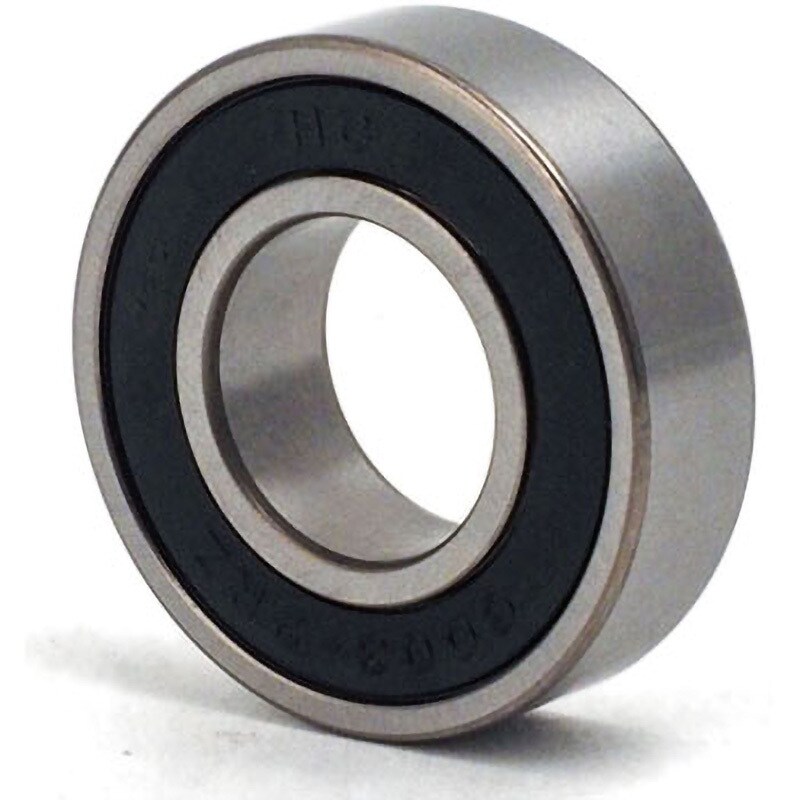

Raceway ring shape: Deep groove ball bearing
Number of raceway ring rows: Single row
Rolling element Material: High carbon chromium bearing steel
Bearing series: 6000
