Description
Dimension A(mm): 100
Dimension b (mm): 82
Dimension h (mm): 100
Dimension H1(mm): 35
Dimension H2(mm): 198
Dimension J(mm): 290
Dimension l (mm): 380
Dimension L1(mm): 107
Dimension N(mm): 27
Dimension N1(mm): 40
Dimension S(mm): 32
Dimension d(mm): 75

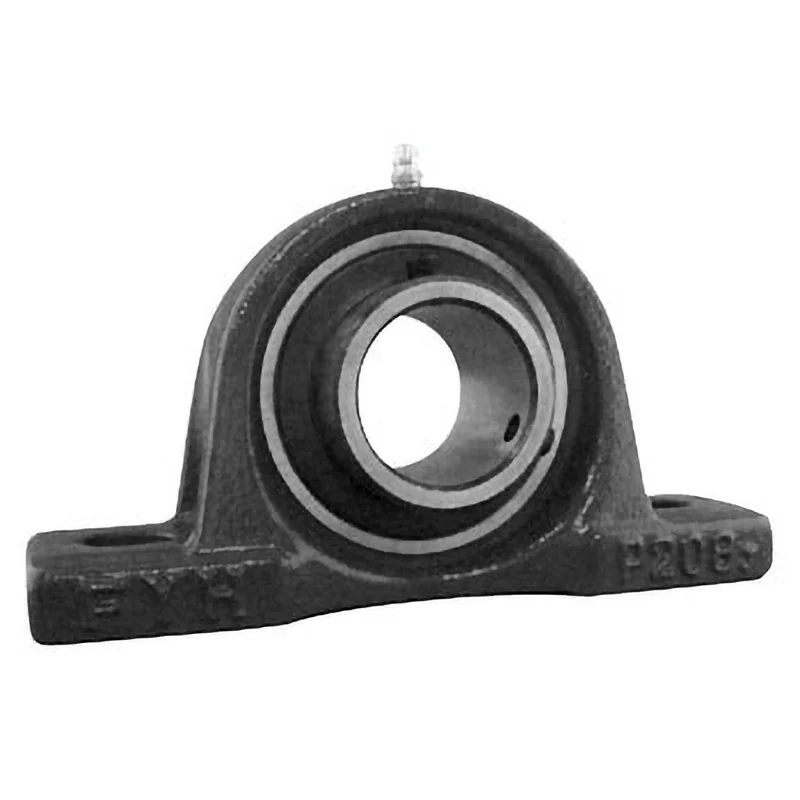

Shape: Pillow Block Unit
Uses: Transmission devices, general machinery, etc.
Suitable for P315
Grease nipple: Equipped with a grease nipple
Load type: For heavy loads
Cover: No cover
Bore type: Cylindrical bore (with set screw)
Basic static load rating (kN): 77.2
Basic dynamic load rating (kN): 113
Bearing designation: UC315
Nominal size of the mounting bolt: M22
Coefficient: 13.2
Compliant with RoHS Directive (corresponding to 10 substances)
