Description
Specification: Under-mount (Undermount)
Material: Steel
Height (mm): 28.5
Weight (g): 1400
Travel distance (mm): 213
Width W (mm): 35
Rail length L (mm): 229

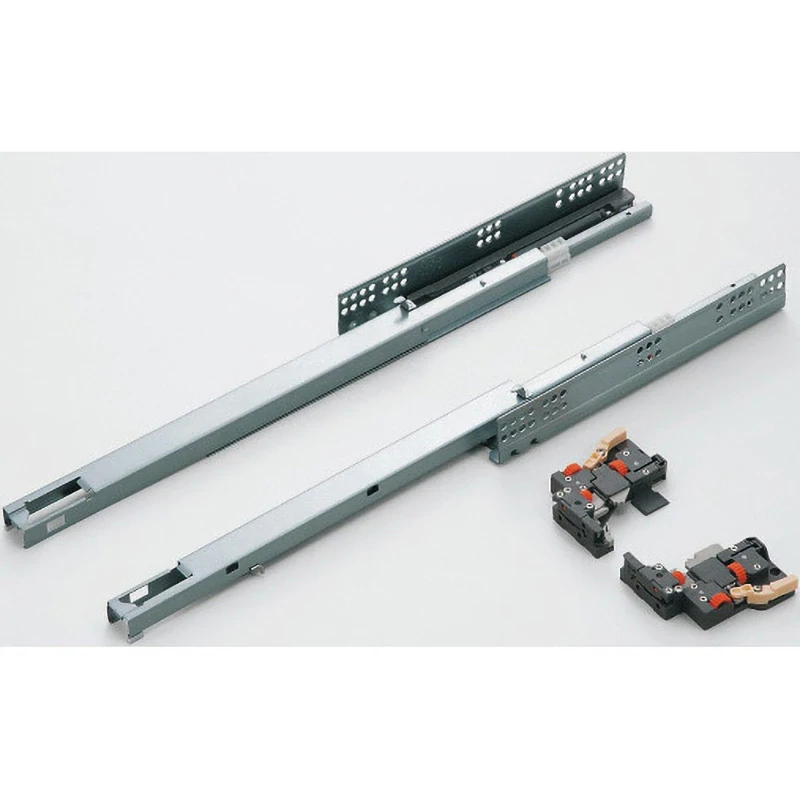

This is a three-section slide rail.
Since the slide rail is not visible from the outside, it does not impair the design of cabinets and similar furniture.
The self & soft closing mechanism activates approximately 30 mm before full closure.
The drawer can be removed by operating the detachment lever.
It features a three-dimensional adjustment function. Using the dial, you can adjust the drawer position within a range of 2.5 mm vertically, 3 mm front-to-back, and plus or minus 1.5 mm side-to-side.
