Description
Specification: Bottom Mount (Under Mount)
Material: Steel
Height (mm): 28.5
Weight (g): 1500
Travel Distance (mm): 233
Width W (mm): 35
Rail Length L (mm): 249

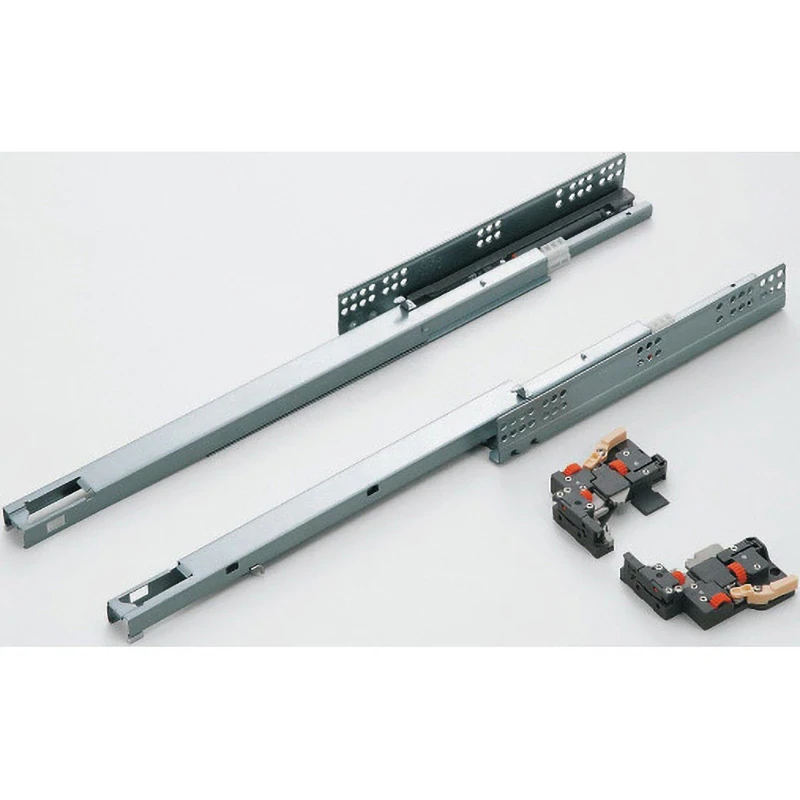

This is a three-stage sliding rail.
Since the sliding rail is not visible from the outside, it does not compromise the design of cabinets and other furniture.
The self & soft closing mechanism operates about 30 mm before closing.
The drawer can be removed using the detachment lever operation.
It features a three-dimensional adjustment function. The position of the drawer can be adjusted up and down by 2.5 mm, front and back by 3 mm, and left and right plus or minus 1.5 mm using dial operation.
