Description
Specification: Under Mount
Material: Steel
Height (mm): 28.5
Weight (g): 1600
Travel Distance (mm): 263
Width W (mm): 35
Rail Length L (mm): 279

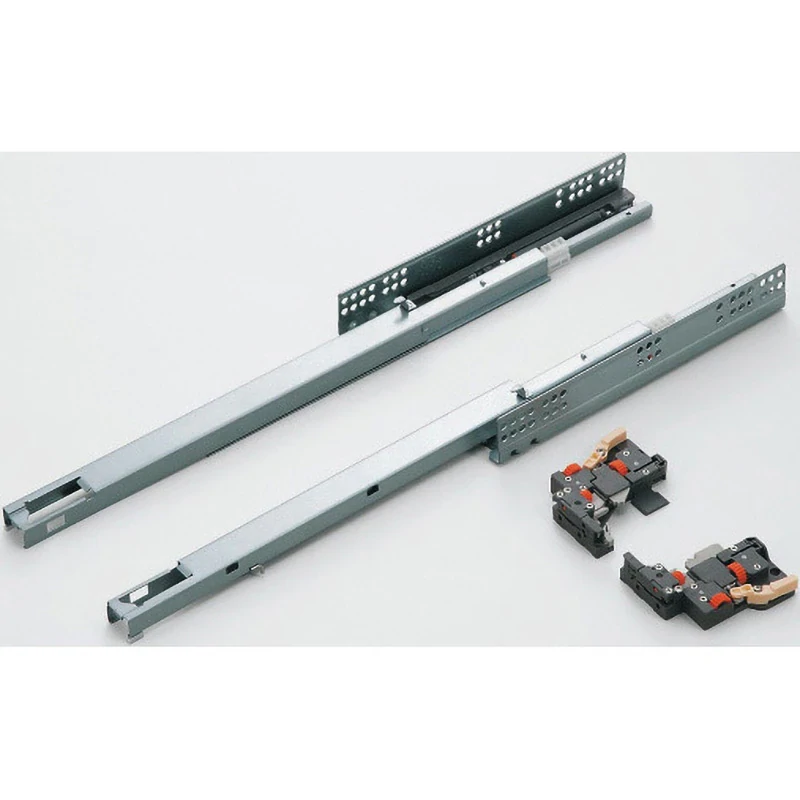

This is a three-section slide rail.
Since the slide rail is not visible from the outside, it does not compromise the design of cabinets and similar furniture.
The self and soft closing mechanism activates approximately 30 mm before fully closing.
The drawer can be removed by operating the detachment lever.
It features a three-dimensional adjustment function. Using the dial, the drawer position can be adjusted within ??2.5 mm vertically, ??3 mm front-to-back, and ??1.5 mm left-to-right.
