Description
Specification: Bottom Mount (Under Mount)
Material: Steel
Height (mm): 28.5
Weight (g): 2000
Travel Distance (mm): 363
Width W (mm): 35
Rail Length L (mm): 379

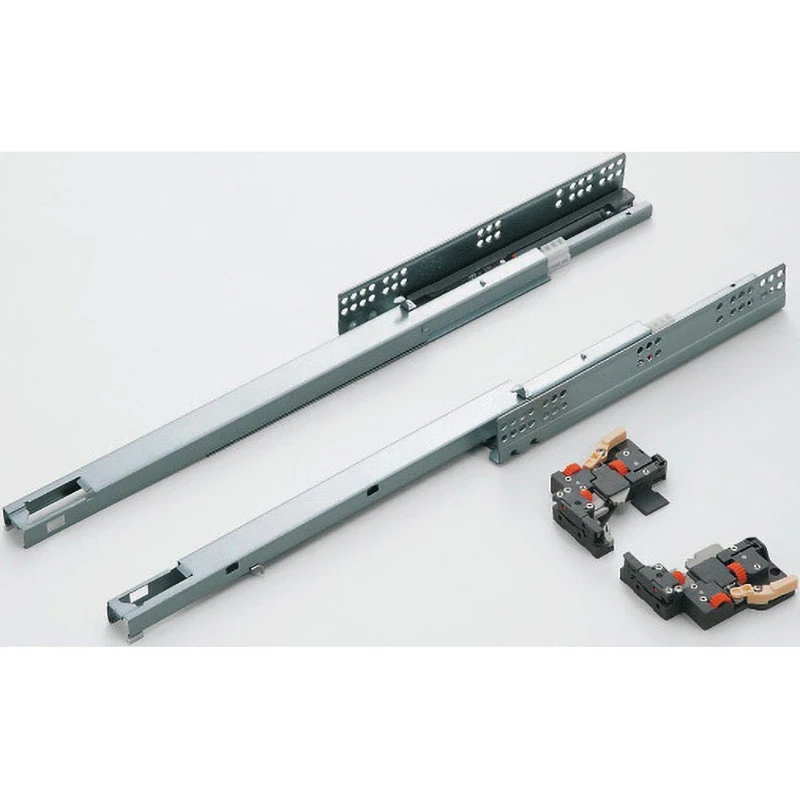

This is a three-stage slide rail.
Since the slide rail is not visible from the outside, it does not compromise the design of cabinets and other furniture.
The self & soft-closing mechanism engages approximately 30 mm before closing.
The drawer can be removed using the detachment lever operation.
It comes with a three-dimensional adjustment feature. The position of the drawer can be adjusted vertically by 2.5 mm, front and back by 3 mm, and left and right within a range of plus or minus 1.5 mm using dial operation.
