Description
Specification: Bottom-mounted (Under-mount)
Material: Steel
Height (mm): 28.5
Weight (g): 2100
Travel Distance (mm): 413
Width W (mm): 35
Rail Length L (mm): 429

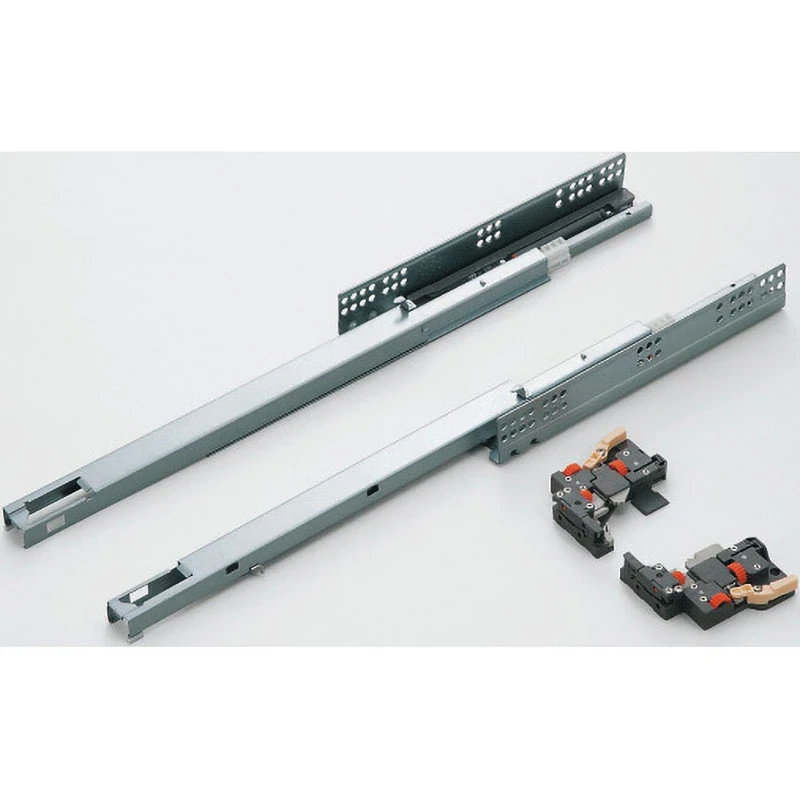

This is a three-stage sliding rail.
Since the sliding rail is not visible from the outside, it does not compromise the design of cabinets and other furniture.
The self & soft-closing mechanism operates approximately 30 mm before closing.
The drawer can be removed by operating the detachment lever.
It features three-dimensional adjustment capabilities. The position of the drawer can be adjusted vertically by 2.5 mm, horizontally by 3 mm, and laterally by plus or minus 1.5 mm using dial operations.
