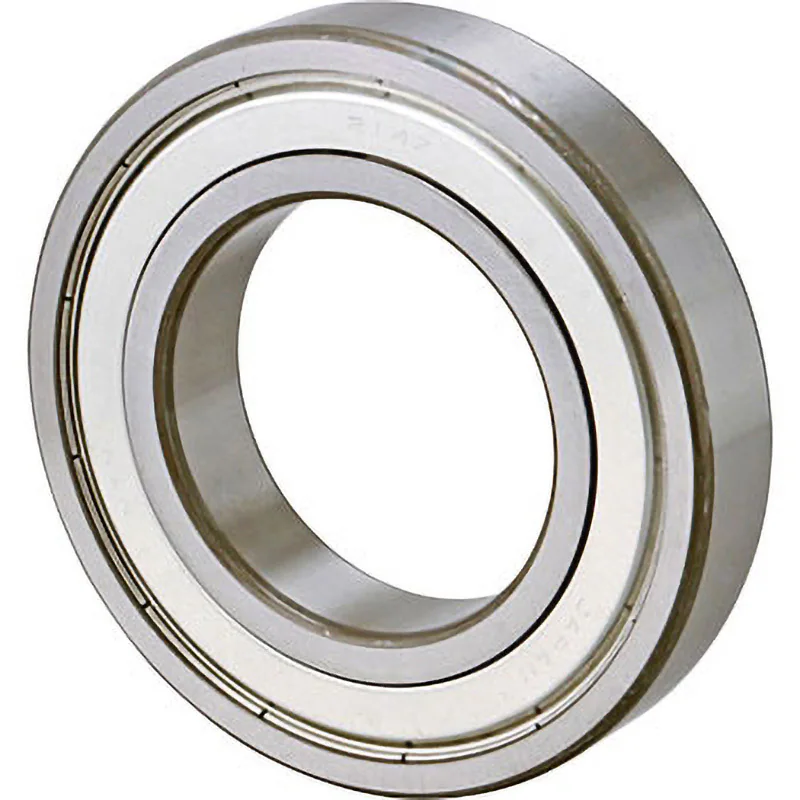

Description
Inner diameter d (mm): 170
Outer diameter D (mm): 310
Width B (mm): 52
Chamfer dimension r (mm): 4(minimum)
Mass (g): 14500
Material: (Main body) High carbon chromium bearing steel
Basic dynamic load rating Cr (N): 212000
Basic static load rating Cor (N): 223000
JIS grade: 0
Shield shape: Single-sided shielded type
Load direction: Radial
Outer ring type: Flat
Raceway ring shape: Deep groove ball bearing
Number of raceway ring rows: Single row
Rolling element Material: High carbon chromium bearing steel
Allowable rotational speed (/min) Oil lubrication: 2400
Bearing series: 6200
