Description
Inner diameter d (mm): 100
Outer diameter D (mm): 180
Width B (mm): 34
Chamfer dimension r (mm): 2.1(minimum)
Mass (g): 3140
Material: (Main body) High carbon chromium bearing steel
Compliant with RoHS Directive (corresponding to 10 substances)
Basic dynamic load rating Cr (N): 122000
Basic static load rating Cor (N): 93000
JIS grade: 0
Shield shape: Single-sided shielded type
Load direction: Radial
Outer ring type: Flat

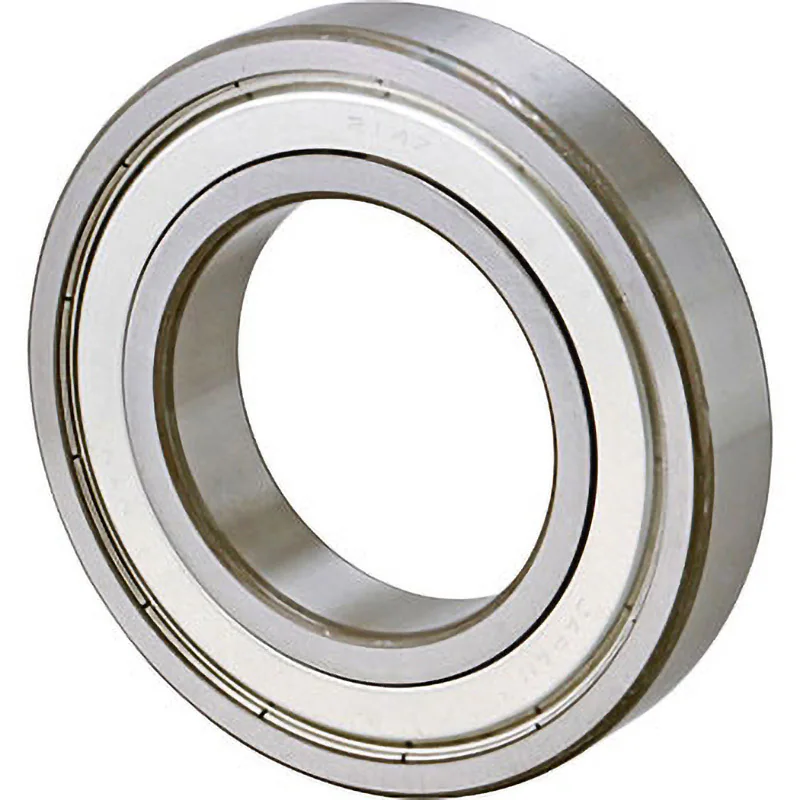

Raceway ring shape: Deep groove ball bearing
Number of raceway ring rows: Single row
Rolling element Material: High carbon chromium bearing steel
Allowable rotational speed (/min) Oil lubrication: 4200
Bearing series: 6200
