Description
Specification: Bottom-mounted (Under-mount)
Material: Steel
Height (mm): 28.5
Weight (g): 2300
Travel Distance (mm): 463
Width W (mm): 35
Rail Length L (mm): 479

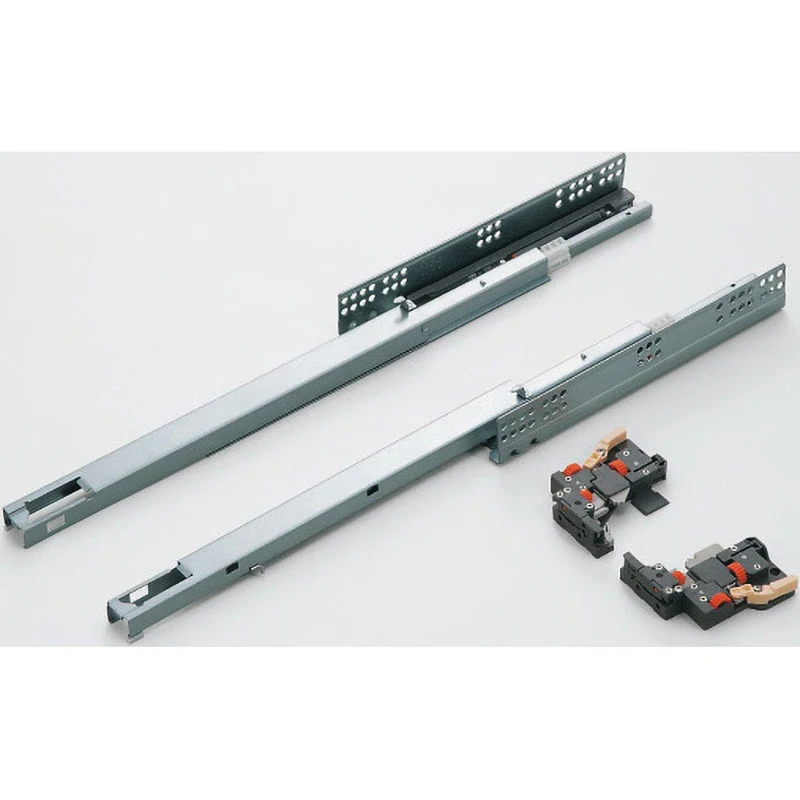

This is a 3-stage sliding rail.
Since the sliding rail is not visible from the outside, it does not compromise the design of cabinets and other furniture.
The self & soft-closing mechanism operates approximately 30 mm before closing.
Drawers can be removed with a detachment lever operation.
It features a three-dimensional adjustment function. The position of the drawer can be adjusted vertically by 2.5 mm, front and back by 3 mm, and left and right within a range of plus or minus 1.5 mm using dial operation.
