Description
Inner diameter d (mm): 55
Outer diameter D (mm): 100
Width B (mm): 21
Chamfer dimension r (mm): 1.5(minimum)
Mass (g): 601
Material: (Main body) High carbon chromium bearing steel
Basic dynamic load rating Cr (N): 43500
Basic static load rating Cor (N): 29200
JIS grade: 0
Shield shape: Single-sided shielded type
Load direction: Radial
Outer ring type: Flat

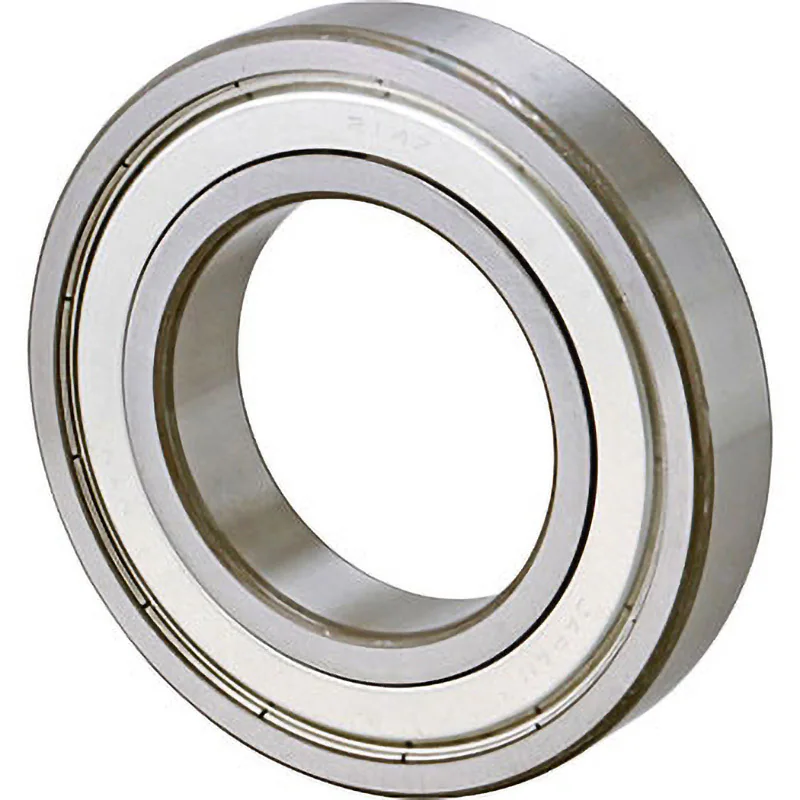

Raceway ring shape: Deep groove ball bearing
Number of raceway ring rows: Single row
Rolling element Material: High carbon chromium bearing steel
Allowable rotational speed (/min) Oil lubrication: 7600
Bearing series: 6200
