Description
Specification bottom-mounted (under-mount)
Material: Steel
Height (mm): 28.5
Weight (g): 2500
Travel distance (mm): 513
Width W (mm): 35
Rail length L (mm): 529

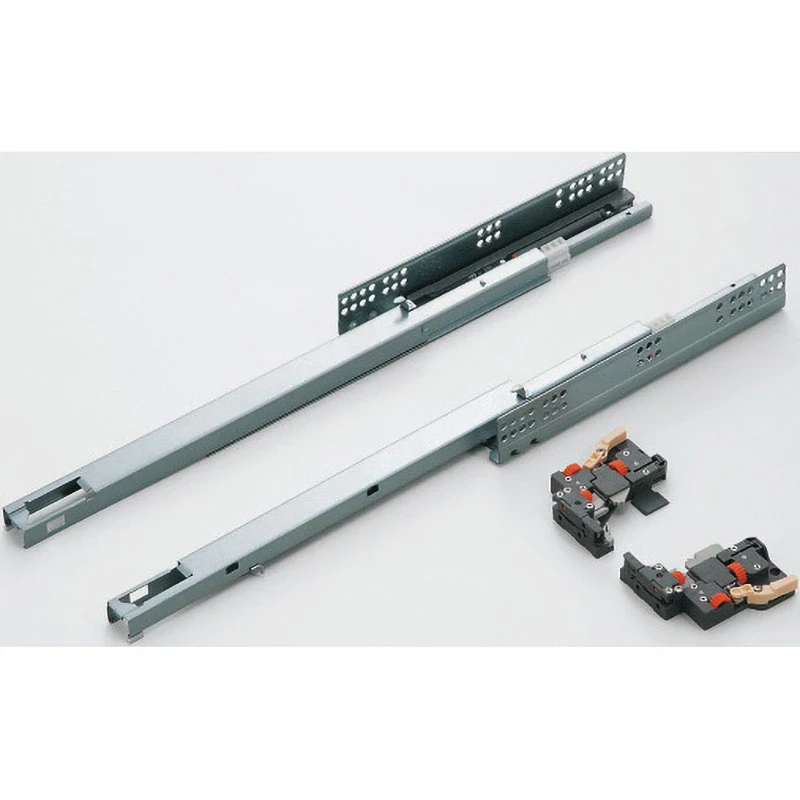

This is a three-stage sliding rail.
Since the sliding rail is not visible from the outside, it does not compromise the design of cabinets and other furniture.
The self & soft-closing mechanism operates approximately 30 mm before closing.
The drawer can be removed with the detachable lever operation.
It has a three-dimensional adjustment function. The position of the drawer can be adjusted up and down by 2.5 mm, front and back by 3 mm, and left and right by plus or minus 1.5 mm using the dial operation.
