Description
Inner diameter d (mm): 60
Outer diameter D (mm): 110
Width B (mm): 22
Chamfer dimension r (mm): 1.5
Mass (g): 783
Material: (Main body) High carbon chromium bearing steel
Basic dynamic load rating Cr (N): 52500
Basic static load rating Cor (N): 36000
JIS grade: 0
Shield shape: ?????`?????
Load direction: Radial
Outer ring type: Flat

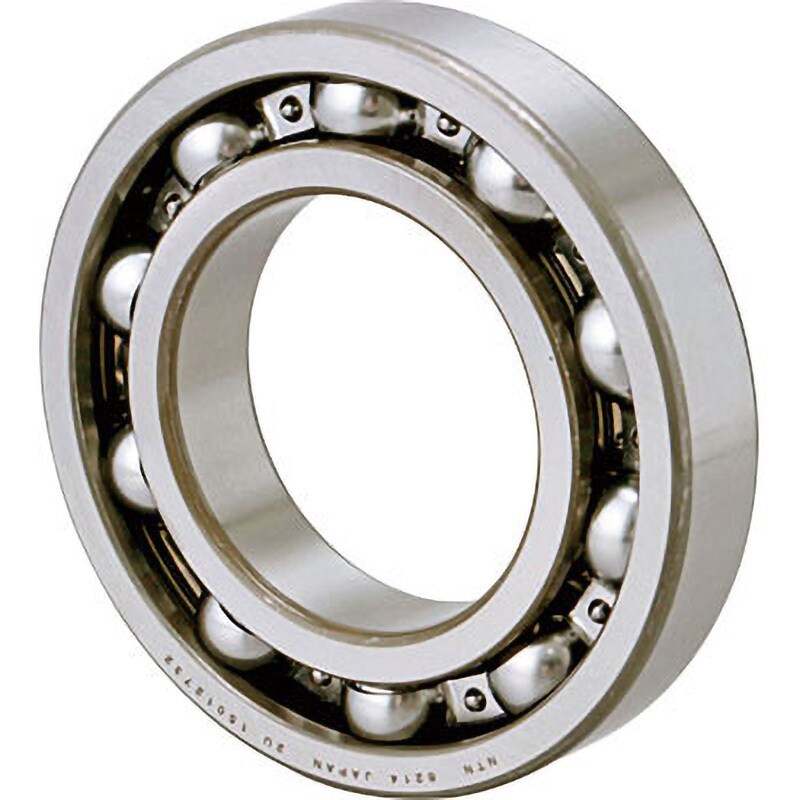

Raceway ring shape: Deep groove ball bearing
Number of raceway ring rows: Single row
Rolling element Material: High carbon chromium bearing steel
Allowable rotational speed (/min) Oil lubrication: 7000
Bearing series: 6200
