Description
Specification: Bottom Mount (Under Mount)
Material: Steel
Height (mm): 28.5
Weight (g): 2800
Travel Distance (mm): 563
Width W (mm): 35
Rail Length L (mm): 579

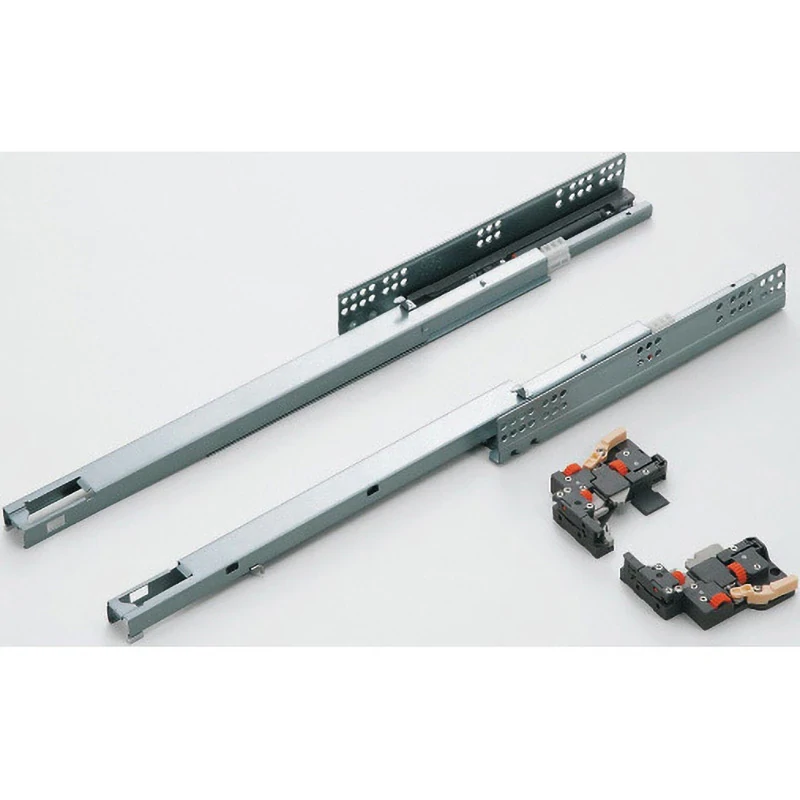

This is a three-stage sliding rail.
The sliding rail is not visible from the outside, thus maintaining the design integrity of cabinets and similar furniture.
The self & soft-closing mechanism activates approximately 30 mm before closing.
The drawer can be removed using a detachment lever operation.
It features three-dimensional adjustment capabilities. The drawer position can be adjusted vertically by 2.5 mm, horizontally by 3 mm, and laterally by plus or minus 1.5 mm using a dial operation.
