Description
Contents: 1 set
Trusco Part Number: 293-8731
Part Number: 143SL-T-PC｡ｾSlightly Imperfect｡ｿ
Product Condition: Reason specified (Unused, Package Defect)
Usage: For Steel Doors, Suitable for Outdoor Use
Special Note: ｡ｾSlightly Imperfect｡ｿ This is a non-returnable product due to specified reasons. Please check the product condition section for details.
Trusco Part Number: 293-8731

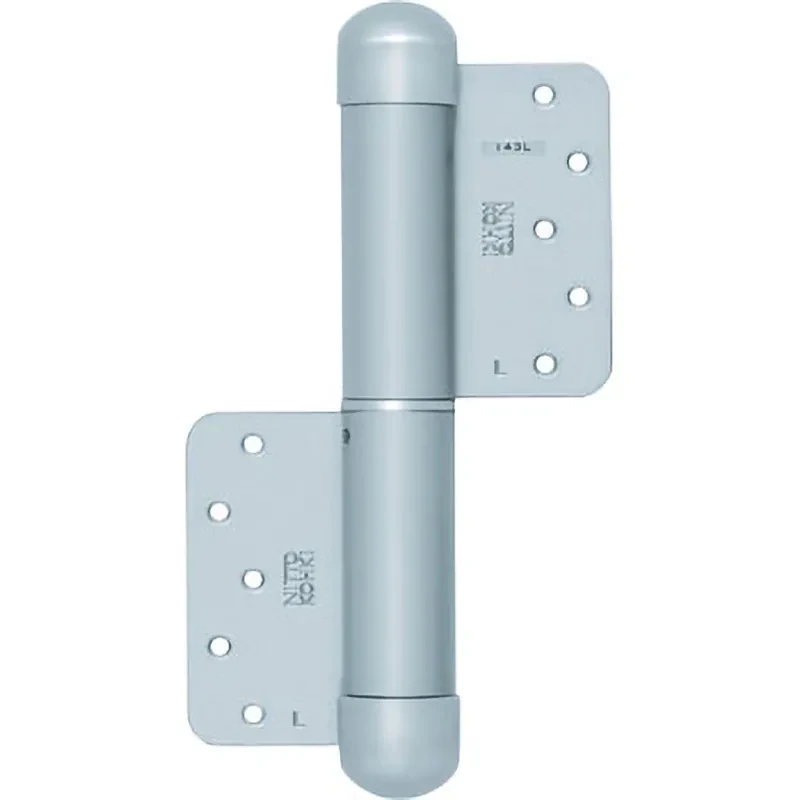

Set Contents: Spring Hinge, Damper Hinge, Spring Pin, 2 Protective Covers
Width (mm): 120
Thickness (mm): 4

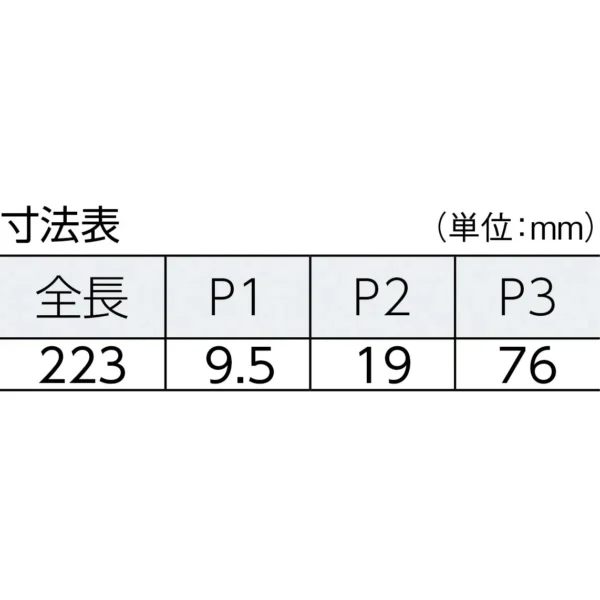

Total Length (mm): 223
Material (Main Body): Steel Plate
Surface Treatment: Acrylic Resin Baked Coating
Mounting Holes: M6 Tapped Holes
Handing: Left Opening (L) Push Handing
Stop Angle: 85 degrees and 150 degrees
With Stop Mechanism
Maximum Opening Door Angle (degrees): 180 (Single-Direction Opening)
Compatible Door Size: Weight / 60kg or less, Width * Height * Thickness (mm): / 900 or less * 2100 or less * 30 or more
Applicable Door Material: Steel
Applicable Frame Material: Steel
Surface Color: Silver
Closing Force (N*m): 15
Main Body Cylinder Diameter (mm): 35
100PC Series Butt Type.
Outdoor Use Possible with Drip-Proof Specification.
Easy Closing Speed Adjustment.

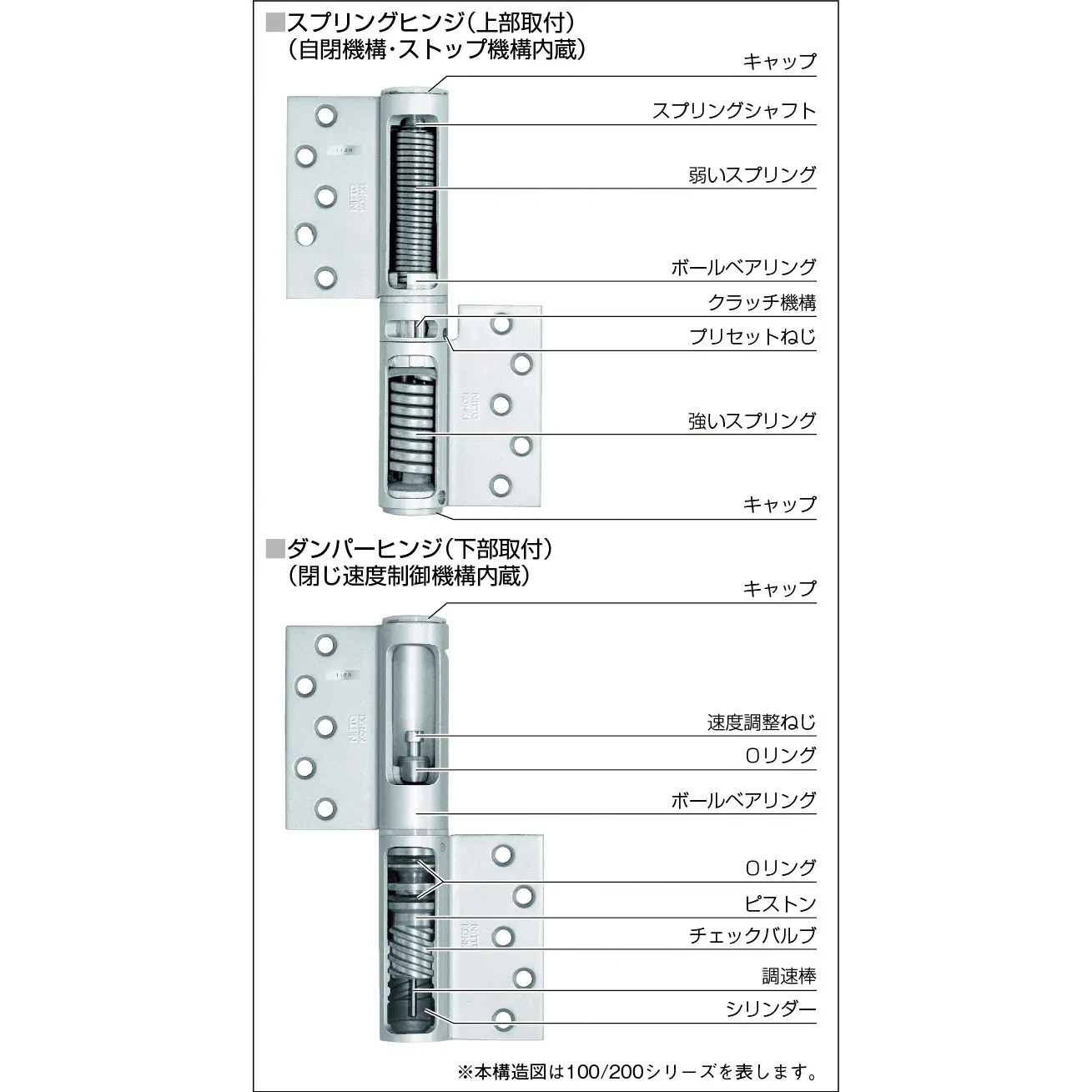

Built-in Temperature Compensation Mechanism maintains the closing speed almost constant regardless of changes in environmental temperature.
Powerful closing force with two spring strengths and their switching mechanism.
