Description

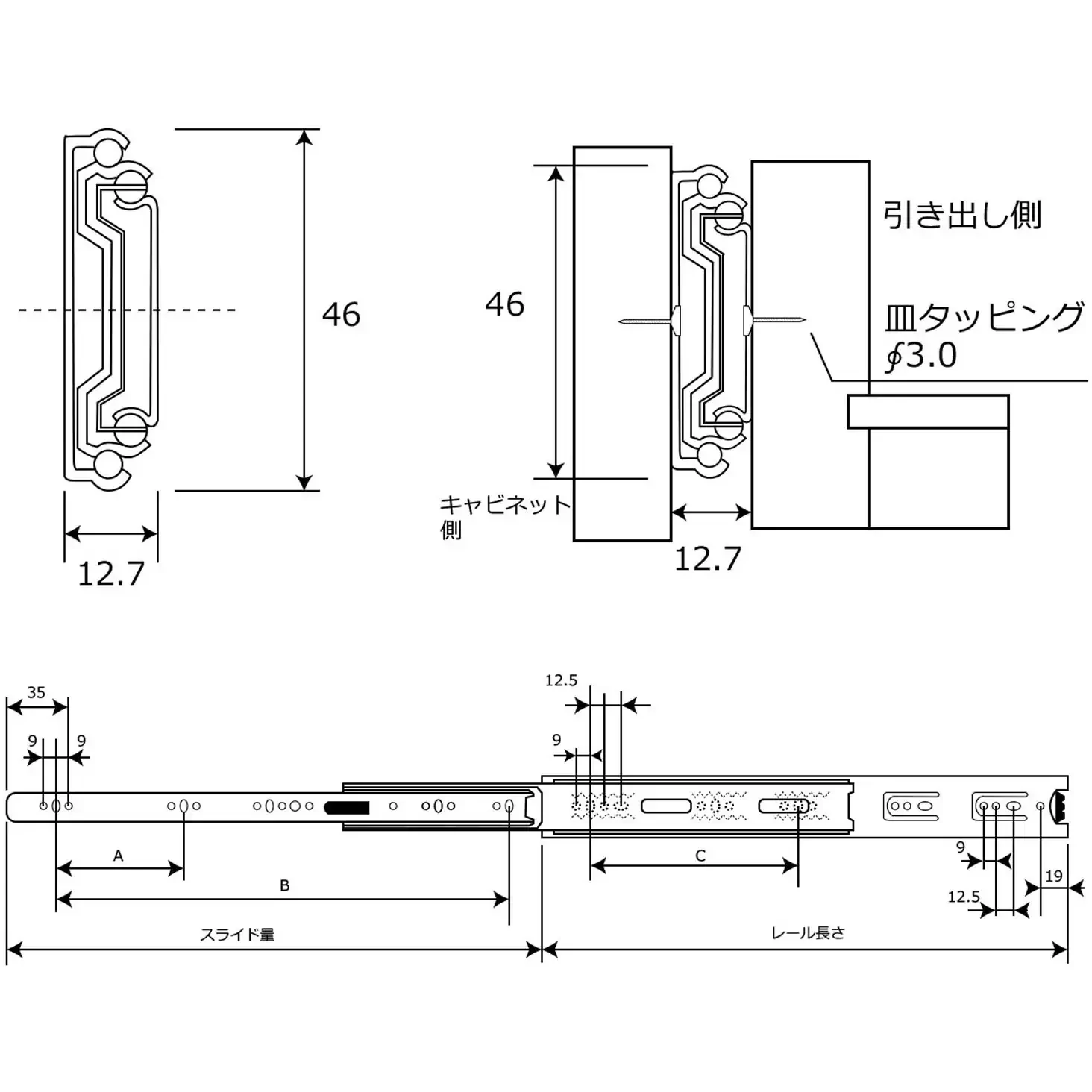

Dimension A (mm): 128
Dimension B (mm): 393
Dimension C (mm): 224
Type: Slide type
Stroke (mm): 457
Rail length (mm): 450
Rated load (N): 441 (left and right pair)
Number of stages: 3
Material: (Rail) Steel
Surface treatment: (Rail) Zinc plated
Slide dimension (mm): 457
Clearance (mm): 12.7

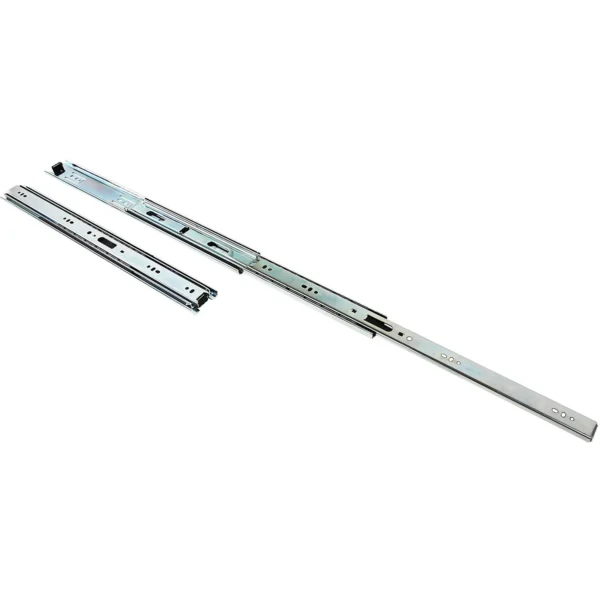

The drawer fully extends, making it easy to retrieve items from the back! Detachable bearing type, one-way slide
