Description

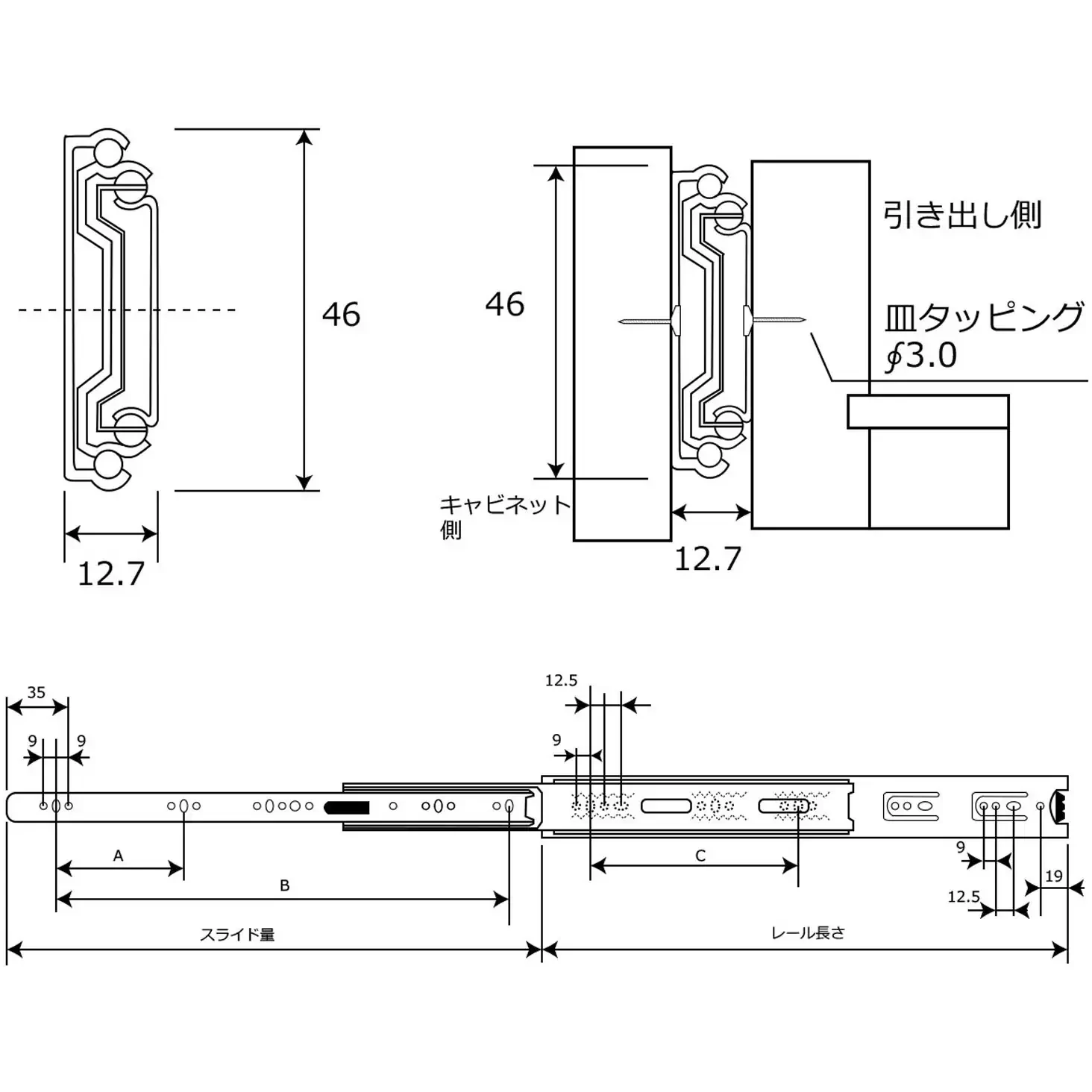

Dimension A (mm): 128
Dimension B (mm): 343
Dimension C (mm): 224
Type: Sliding
Stroke (mm): 406
Rail Length (mm): 400
Rated Load (N): 441 (pair of left and right)
Number of Layers: 3
Material: (Rail) Steel
Surface Treatment: (Rail) Nickel Plating
Slide Dimension (mm): 406
Clearance (mm): 12.7

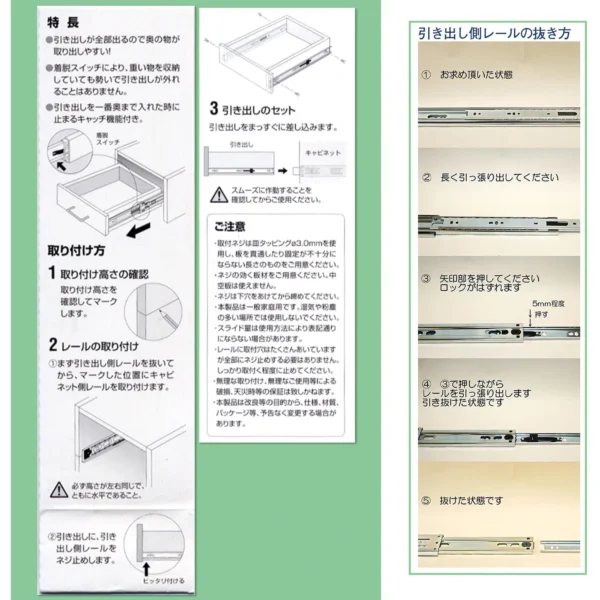

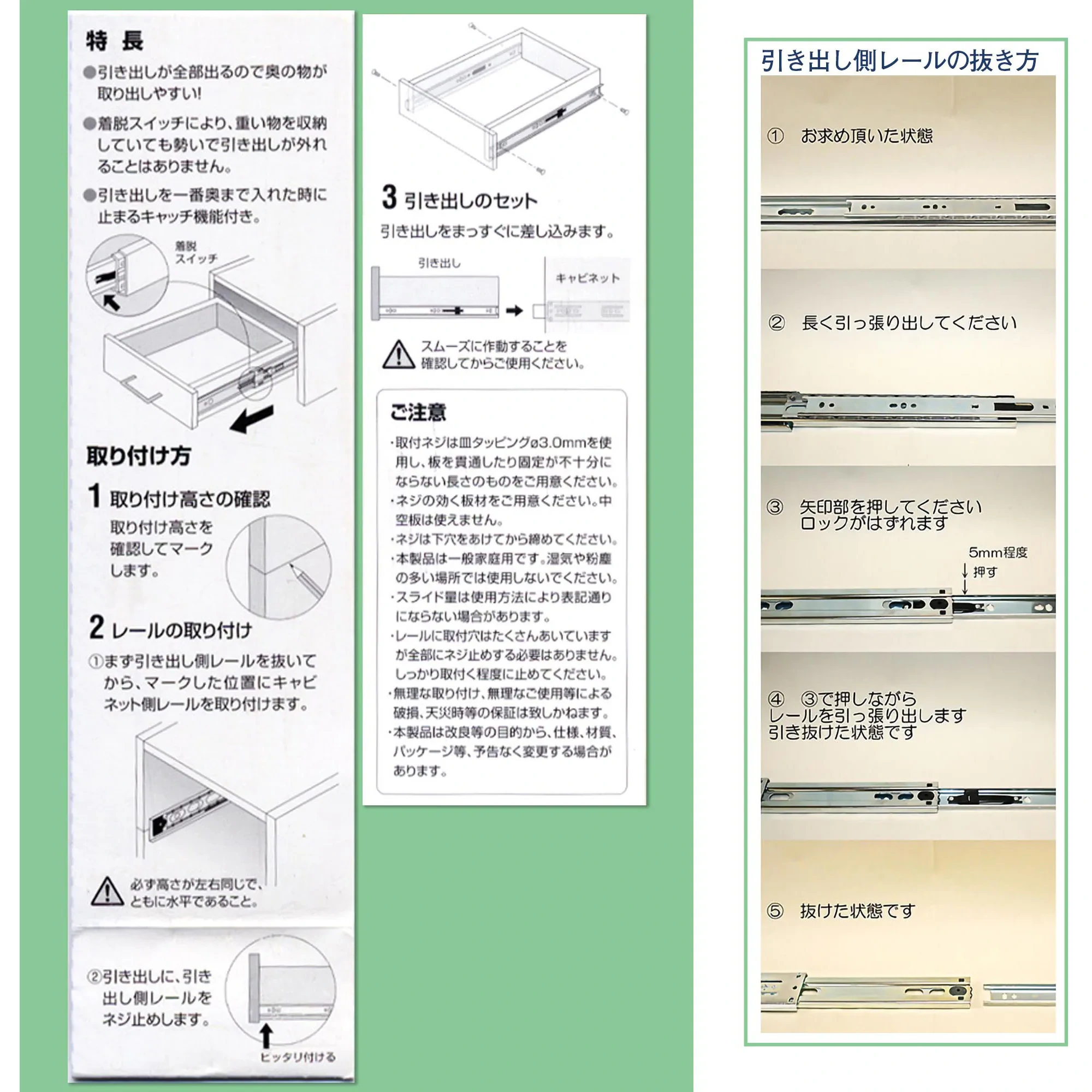

Since the drawer fully extends, items at the back are easy to take out! Bearing type, removable, one-way slide
