Description

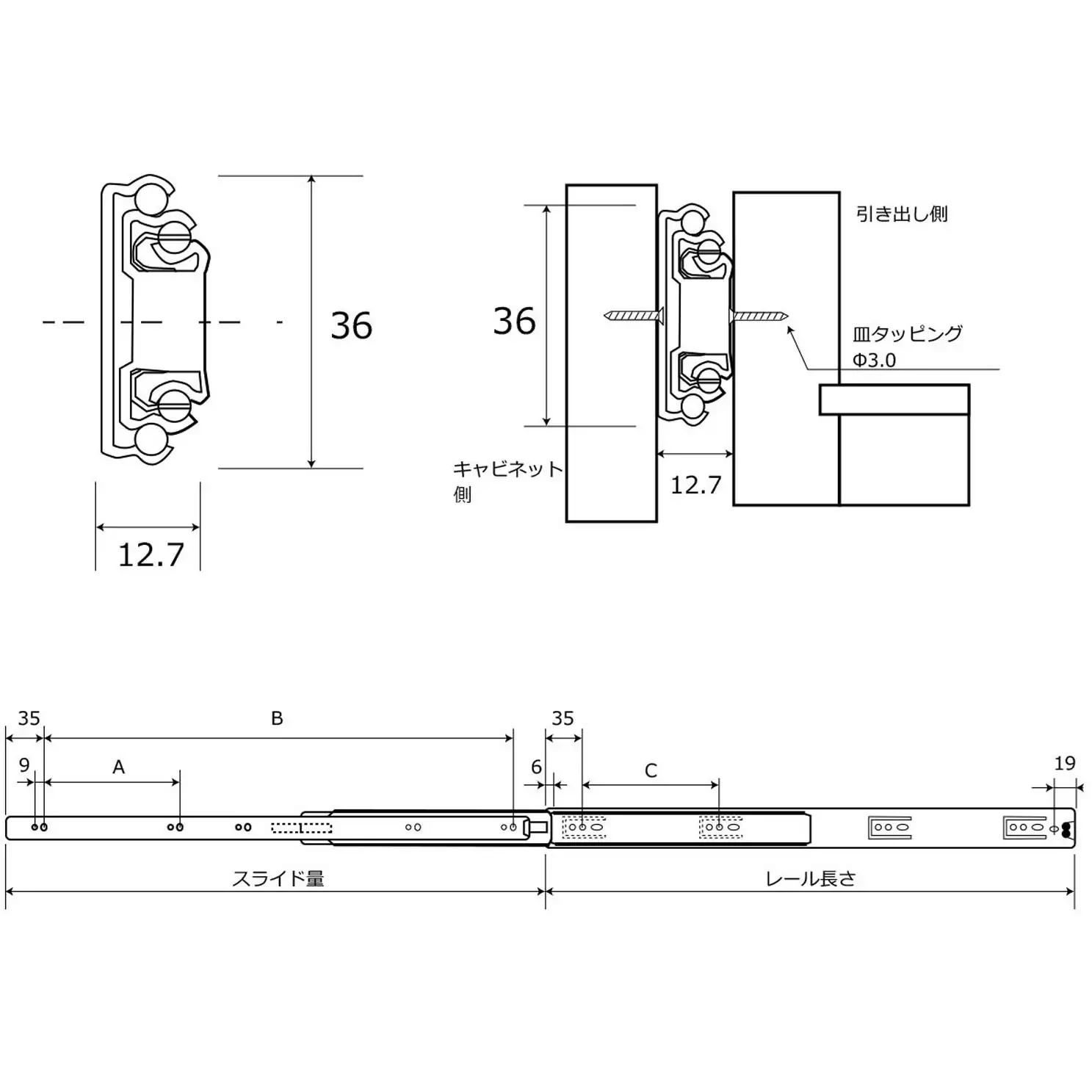

Dimension A (mm): 128
Dimension B (mm): 392
Dimension C (mm): 128
Type: Slide Type
Stroke (mm): 457
Rail Length (mm): 450
Rated Load (N): 245 (Left and Right Pair)
Number of Steps: 3
Material: (Rail) Steel
Surface Treatment: (Rail) Zinc Plating
Slide Dimension (mm): 457
Clearance (mm): 12.7
Since the drawer can be fully pulled out, it is easy to access items at the back! Bearing type, detachable, unidirectional slide
