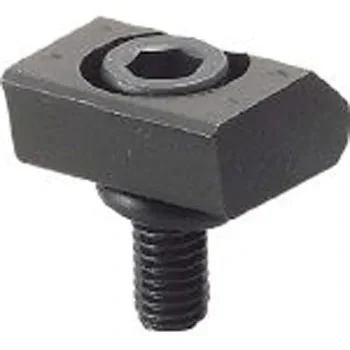

Description
Contents: 1 piece
Screw dimensions: M12*1.75-30L
Type for black skin surface
Item number: MBSC12A
Screw dimensions: M12*1.75-30L
TRUSCO Part No.292-7233
Stroke (mm): 1.9
Width (mm): 38.1
Weight (g): 200
Type for black skin surface
Depth (mm): 38.1
Dimension H (mm): –
Dimension A (mm): –
Dimension F (mm): –
Dimension D (mm): –
Dimension E (mm): –
Dimension B (mm): –
Dimension C (mm): –
Dimension G (mm): –
Clamping force (kN): 50
Allowable tightening torque (N*m): 145
When unclamped, the clamping tip rises due to the O-ring.
