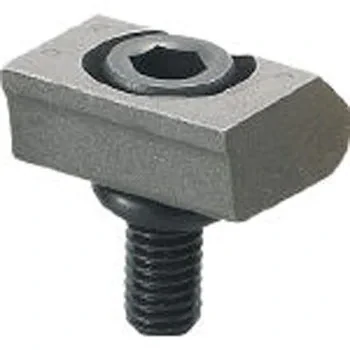

Description
Contents: 1 piece
Screw dimensions: M10*1.5-25L
Type finish: Surface
Item number: MBSC10B
Screw dimensions: M10*1.5-25L
TRUSCO Part No.292-7276
Stroke (mm): 1.2
Width (mm): 25.4
Weight (g): 65
Type finish: Surface
Depth (mm): 25.4
Dimension H (mm): –
Dimension A (mm): –
Dimension F (mm): –
Dimension D (mm): –
Dimension E (mm): –
Dimension B (mm): –
Dimension C (mm): –
Dimension G (mm): –
Clamping force (kN): 17
Permissible tightening torque (N*m): 40.6
When unclamped, the clamping tip rises with the O-ring.
