Description
Dimension L1 (mm): 215
Dimension L2 (mm): 214
Dimension N (mm): 6
Dimension P1 (mm): 195
Dimension P2 (mm): 180
Dimension P3 (mm): 120
Dimension P4 (mm): 75
Dimension P5 (mm): 15
Dimension S (mm): 162
Allowable Load (N/pair): 30
Application: Precision equipment? Measuring instruments? Testing machines
Material: Cold-rolled stainless steel sheet (SUS304)
Manufacturing weight (g): 26
Takigen Code 31828

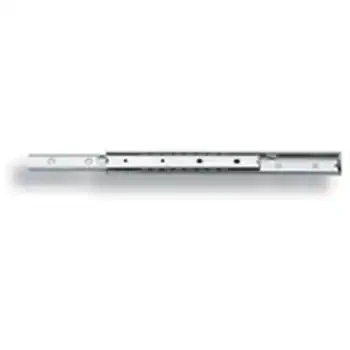

Can be used in various small slide mechanisms with ultra-compact design.
The slide part uses ball bearings for smooth movement.
Made of stainless steel, offering excellent corrosion resistance.
