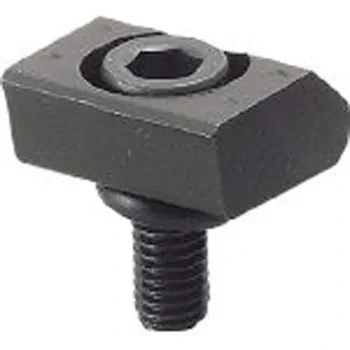

Description
Capacity: 1 piece
Screw dimensions: M6*1-16L
Type for black skin surface
Part number: MBSC06A
Screw dimensions: M6*1-16L
TRUSCO Part No. 292-7217
Stroke (mm): 0.6
Width (mm): 19.1
Weight (g): 21
Type for black skin surface
Depth (mm): 19.1
Dimension H (mm): –
Dimension A (mm): –
Dimension F (mm): –
Dimension D (mm): –
Dimension E (mm): –
Dimension B (mm): –
Dimension C (mm): –
Dimension G (mm): –
Clamping force (kN): 16
Allowable tightening torque (N*m): 22.5
When unclamped, the clamping tip rises with the O-ring.
