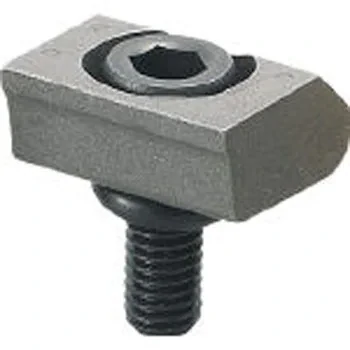

Description
Contents: 1 piece
Screw dimensions: M4*0.7-12L
Type finish: Flat type
Product number: MBSC04B
Screw dimensions: M4*0.7-12L
TRUSCO Part No. 292-7250
Stroke (mm): 0.4
Width (mm): 12.7
Weight (g): 7
Type finish: Flat type
Depth (mm): 12.7
Dimension H (mm): –
Dimension A (mm): –
Dimension F (mm): –
Dimension D (mm): –
Dimension E (mm): –
Dimension B (mm): –
Dimension C (mm): –
Dimension G (mm): –
Clamping force (kN): 6.6
Allowable tightening torque (N*m): 5.6
When unclamped, the clamp tip rises due to the O-ring.
