Description
Contents: 1 piece
Screw dimensions: M2.5*0.45-8L

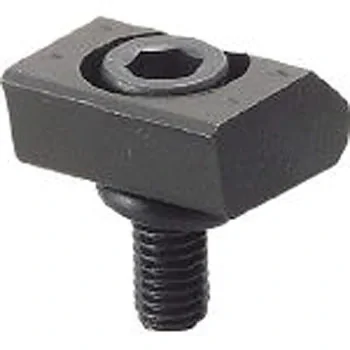

Type for black skin surface
Part number: MBSC025A
Screw dimensions: M2.5*0.45-8L
TRUSCO Part No.292-7195
Stroke (mm): 0.19
Width (mm): 9.5
Weight (g): 3
Type for black skin surface
Depth (mm): 9.5
Dimension H (mm): –
Dimension A (mm): –
Dimension F (mm): –
Dimension D (mm): –
Dimension E (mm): –
Dimension B (mm): –
Dimension C (mm): –
Dimension G (mm): –
Clamping force (kN): 2.8
Allowable tightening torque (N*m): 1.8
When unclamped, the clamp tip rises with the O-ring.
