Description
Inner diameter d (mm): 45
Outer diameter D (mm): 85
Width B (mm): 19
Chamfer dimension r (mm): 1.1
Mass (g): 369
Material: (Main body) High carbon chromium bearing steel
Internal clearance preload symbol: C3
Grease symbol: –
Compliant with RoHS Directive (corresponding to 10 substances)
Shield shape: Contact seal shape on both sides

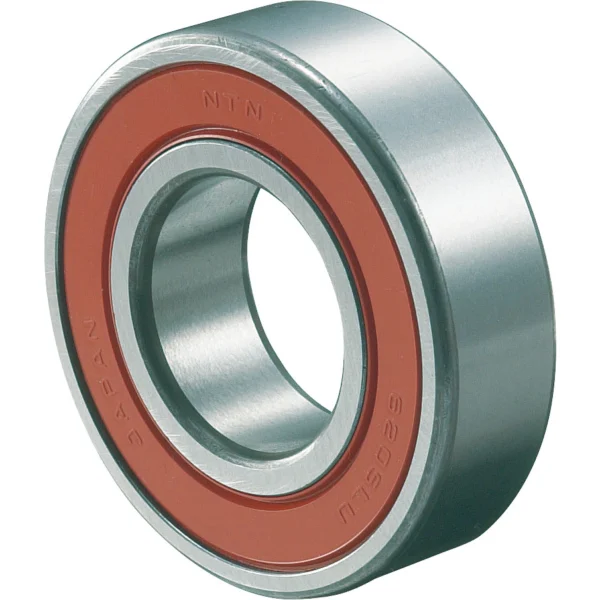

Raceway ring shape: Deep groove ball bearing
Bearing series: 6200
