Description

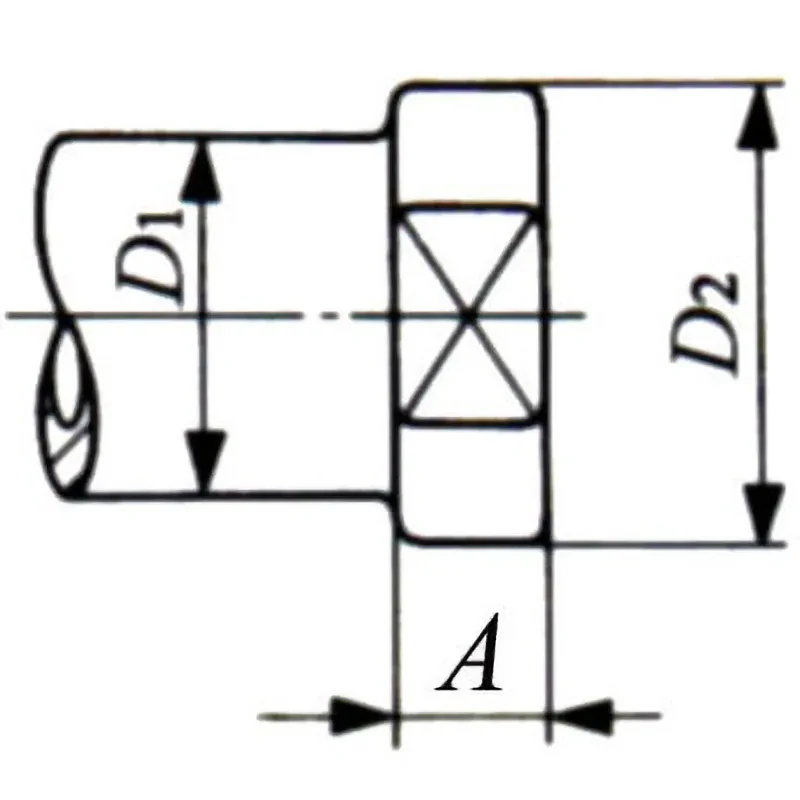

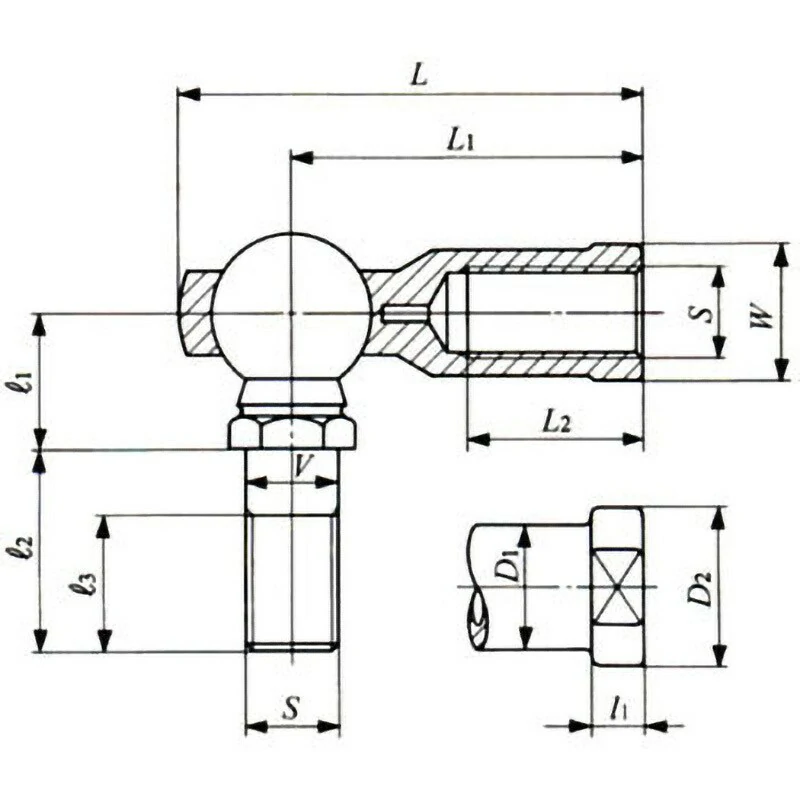

Dimension A (mm): 10

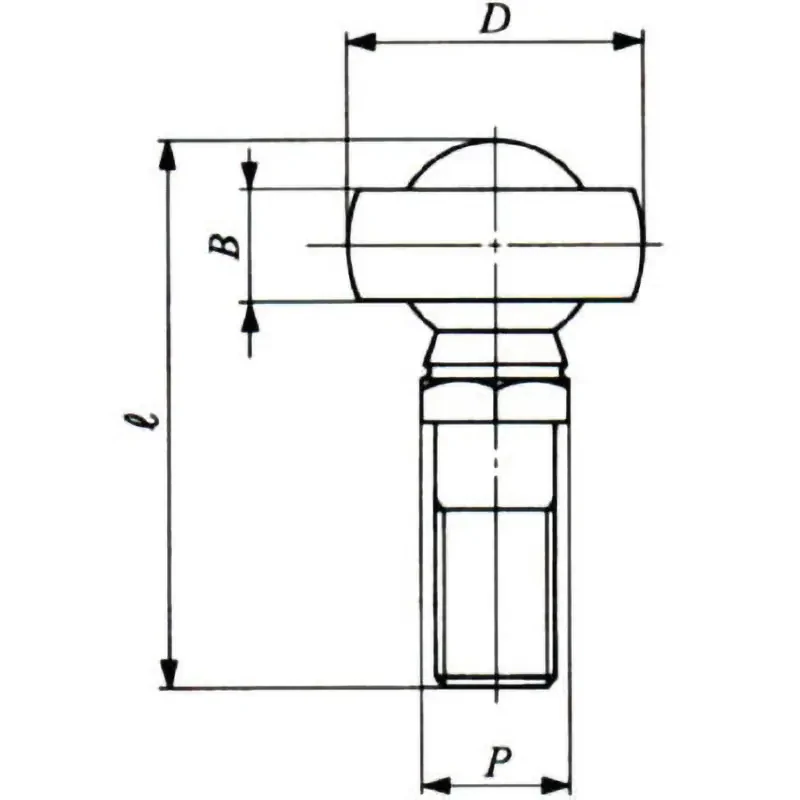

Dimension D (mm): 45
Dimension D1 (mm): 25
Dimension D2 (mm): 31
Dimension L (mm): 93.5
Dimension L1 (mm): 71
Dimension L2 (mm): 40
Dimension P (mm): 22
Dimension V (mm): 18
Dimension W (mm): 27
Dimension l (mm): 84
Dimension l1 (mm): 27.5
Dimension l2 (mm): 40.5
Dimension l3 (mm): 25
Specification 1N is approximately equal to 0.102Kgf
Weight (g): 445
Remarks: Grease is not included. Please use appropriate lubrication.
Thread Direction: Right Thread
S (Thread) M18*1.5
Static Load Capacity (N): 25600
Ball Diameter (mm): 31.75

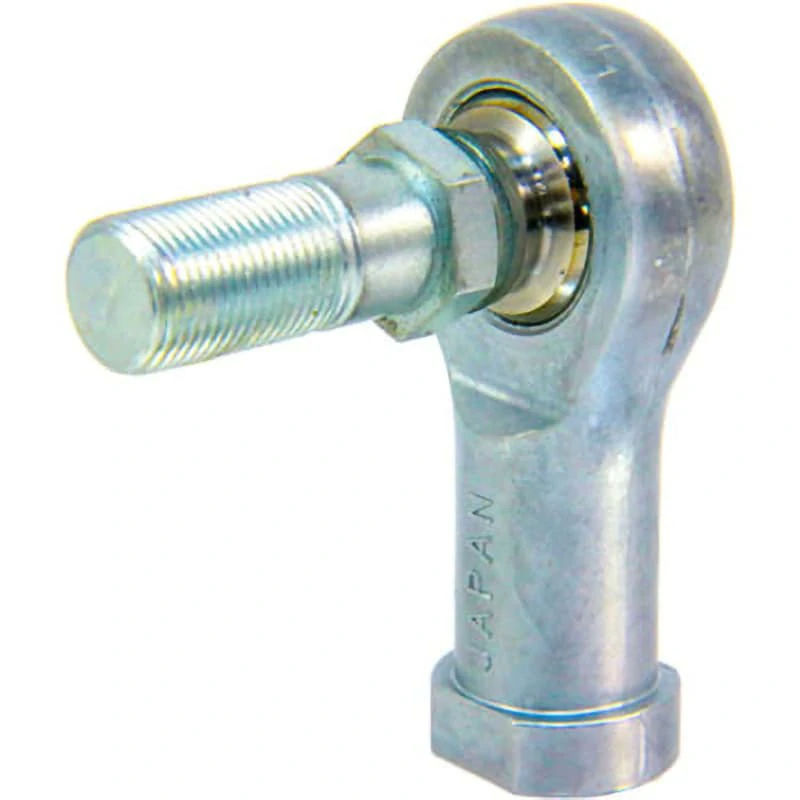

This is an automatically self-aligning spherical sliding bearing integrated with a body made of special zinc die-cast alloy and a ball stud with a cross axis.
Due to the constant gap on the sliding surface｣ｬ it can perform rotational and tilting movements with low torque｣ｬ enabling smooth power transmission.
It is used in link mechanisms for automobiles｣ｬ construction machinery｣ｬ agricultural machinery｣ｬ and packaging machinery.
