Description

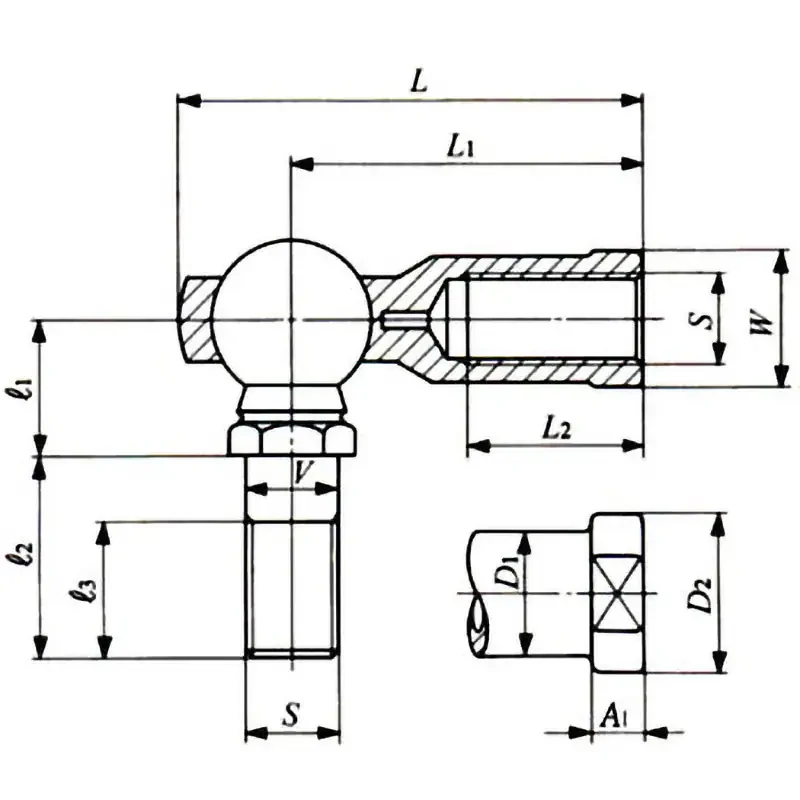

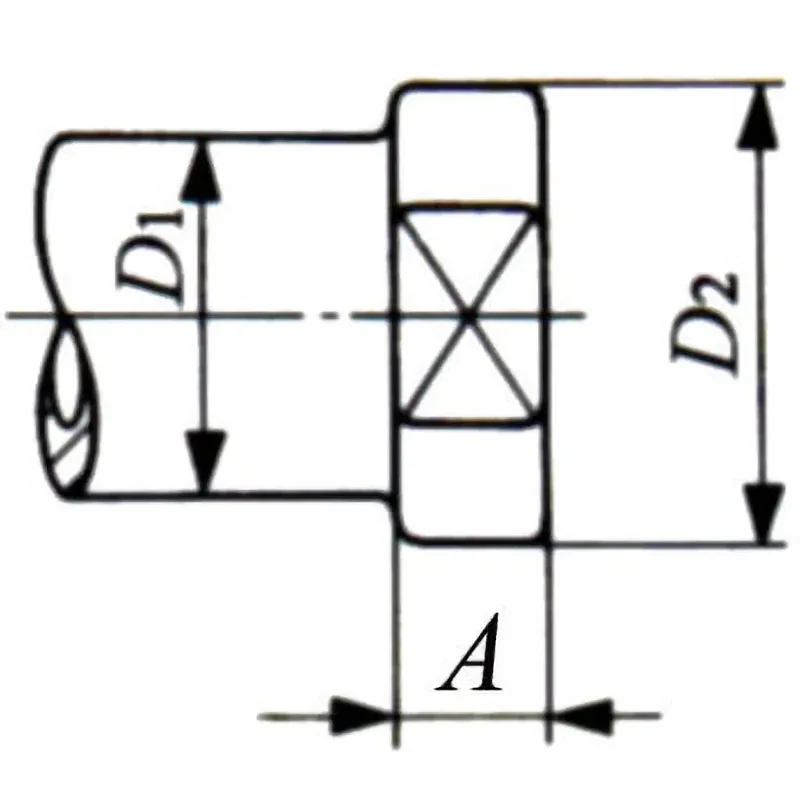

Dimension A (mm): 6.5

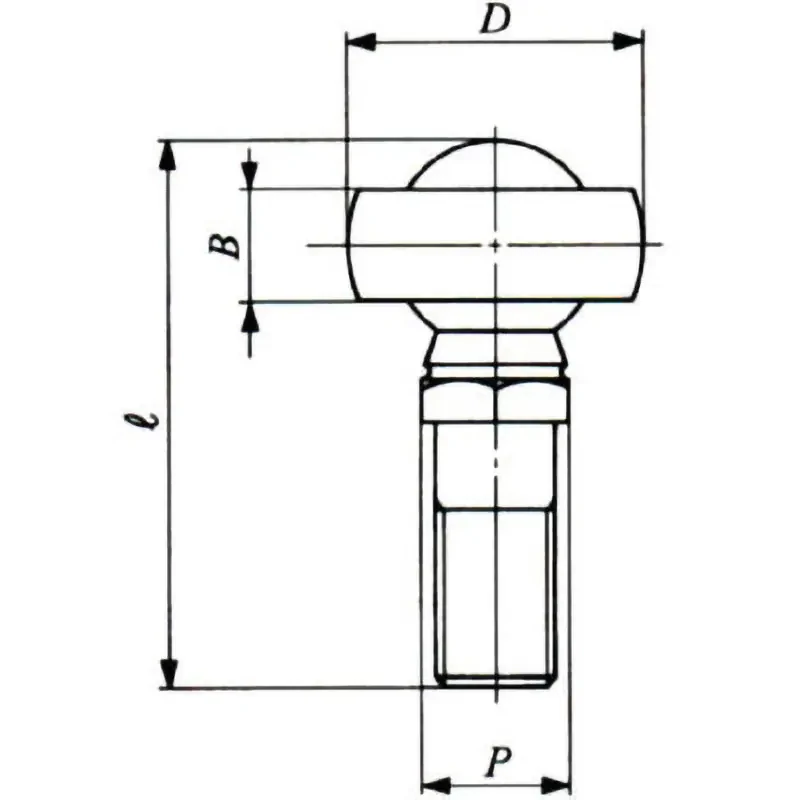

Dimension D (mm): 28
Dimension D1 (mm): 15
Dimension D2 (mm): 19
Dimension L (mm): 57
Dimension L1 (mm): 43
Dimension L2 (mm): 23
Dimension P (mm): 13
Dimension V (mm): 10
Dimension W (mm): 17
Dimension l (mm): 52.5
Dimension l1 (mm): 17
Dimension l2 (mm): 26
Dimension l3 (mm): 18
Specification 1N is about equal to 0.102Kgf
Weight (g): 102
Remarks: Grease is not enclosed. Please use appropriate lubrication.
Screw direction: Right screw
S (screw) M10*1.5
Static load capacity (N): 7640
Ball diameter (mm): 19.05

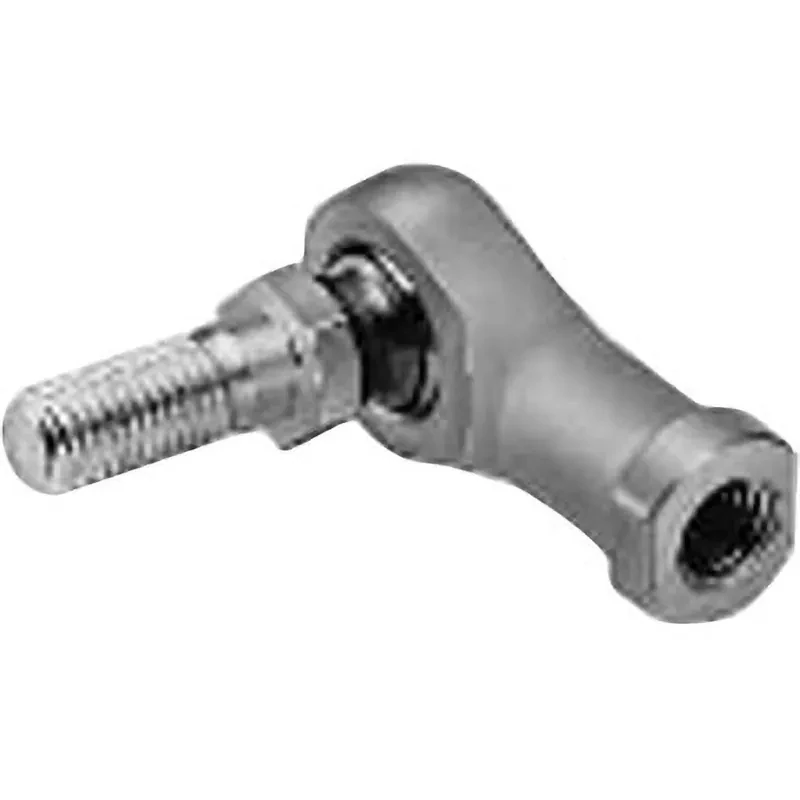

This is an automatic self-aligning spherical sliding bearing that integrates the main body made of special zinc die-cast alloy with a ball stud that has a crossed axis.
Due to the constant gap in the sliding surface｣ｬ it can perform rotational and tilting motion with low torque｣ｬ enabling smooth power transmission.
It is used in link mechanisms of automobiles｣ｬ construction machinery｣ｬ agricultural machinery｣ｬ and packaging machinery.
