Description
Surface Treatment: Trivalent Chrome Plating Finish
Load Capacity (per 2 pieces) (kg): 1

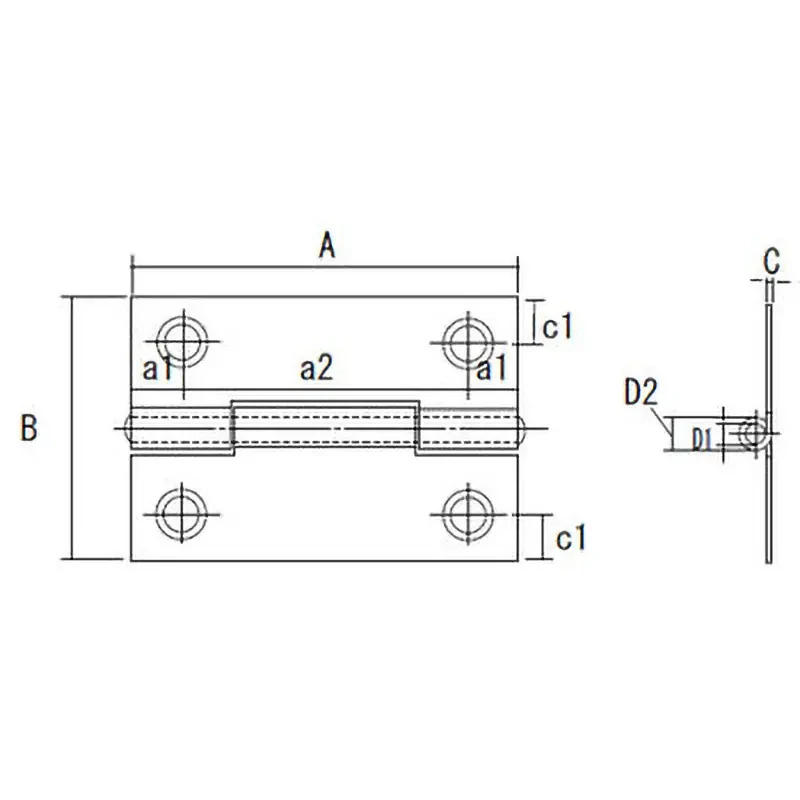

Dimension A (mm): 31.5
Dimension B (mm): 22.0
Dimension C (mm): 0.8
Dimension D1 (mm): 2
Dimension D2 (mm): 3.8
Dimension a1 (mm): 5.0
Dimension a2 (mm): 21.5
Dimension C1 (mm): 4.0
Number of Screw Holes: 4
Hole Diameter (mm): 3.3
Wood Screw Size: 2.1*10 (Diameter*Length)
Material: Steel (SPCC)
Trusco Part Number: 233-6081
Weight (g): 59
