Description
Dimensions L (mm): 200
Trusco Product Number: 377-0354
Height (mm): 30
Weight (g): 79

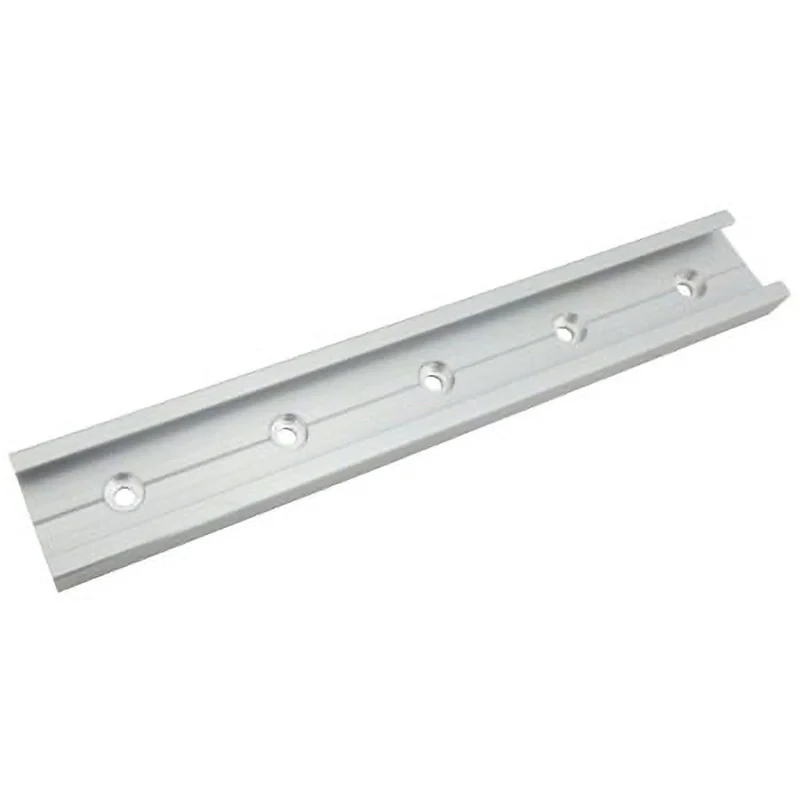

Type: Linear
Dimensions P (mm): 20
Dimensions N (mm): 5
Number of Mounting Holes: 5
Width W (mm): 11
Material: (Rail) Aluminum Alloy
Material / Treatment: Aluminum Alloy / Silver Anodized Treatment (both ends are cut surfaces and uncoated)
Rail Length (mm): 200
Recommended Mounting Bolt: Hex Socket Button Bolt (M4 * Length 6 or more)
Surface Treatment: (Rail) Silver Anodized Treatment
Because it uses a special polyethylene resin with good sliding characteristics, there is no need for lubrication with grease or oil.
The special polyethylene resin has excellent chemical resistance and is stable against various chemicals.
Flame retardancy is UL94HB.
There is also a preloaded type carriage with minimal play.
The rail is recyclable.
