Description
Dimension B (mm): 28
Dimension C1 (mm): 20
Dimension G (mm): M22*1.5
Dimension d (mm): 22
Dimension d1 (mm): 25.8
Dimension d2 (mm): 50
Dimension h (mm): 84
Dimension l1 (mm): 51
Dimension l2 (mm): 109
Chamfer dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome plated (spherical inner ring)
Material (main body): Zinc chromate
Weight (g): 435
Type: With male thread
Material (bush): Special copper alloy
Thread direction: Left thread
Lubrication type: Lubrication-Free｣ｬtype
Dynamic load capacity (N): 74700
Static load capacity (N): 36400
Ball diameter (mm): 38.100

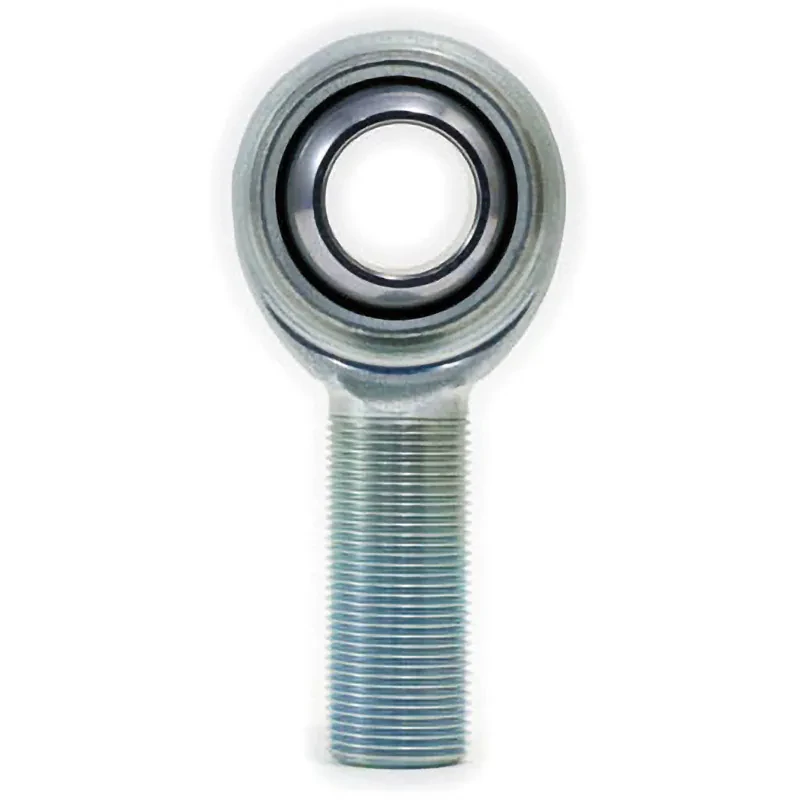

This is an automatically self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bidirectional axial loads with a small capacity.
Pillow ball Rod End｣ｬs have internal or external threads machined into the main body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
