Description
Material: S45C
Heat-Treated Quenching HRC30 plus or minus 5
Surface Treatment: Black Oxide

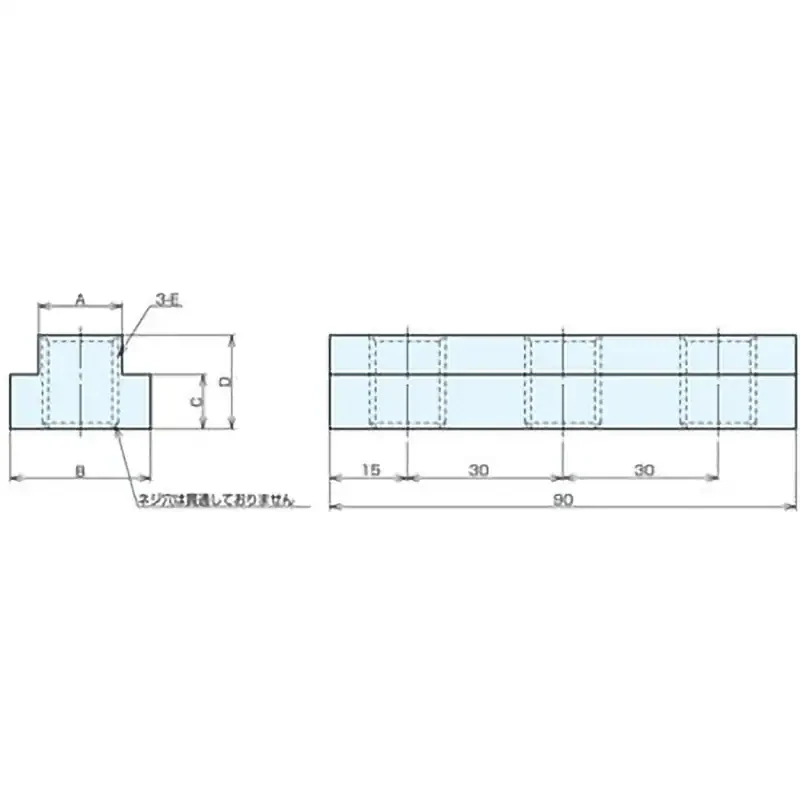

Dimension A (mm): 17 (plus or minus 0.3)
Dimension B (mm): 28.6
Dimension C (mm): 11.1
Dimension D (mm): 19.1
Dimension E (Coarse) M16*2
Weight (g): 249
Compatible T-slot Width (mm): M18
RoHS Directive (10 Substances Compliance): Compliance
