Description
Dimension B (mm): 25
Dimension C1 (mm): 18
Dimension G (mm): M20*1.5
Dimension d (mm): 20
Dimension d1 (mm): 24.4
Dimension d2 (mm): 46
Dimension h (mm): 78
Dimension l1 (mm): 47
Dimension l2 (mm): 101
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Main Body): Zinc Chromate
Weight (g): 340
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Left Thread
Oil Supply Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 61600
Static Load Capacity (N): 30000
Ball Diameter (mm): 34.925

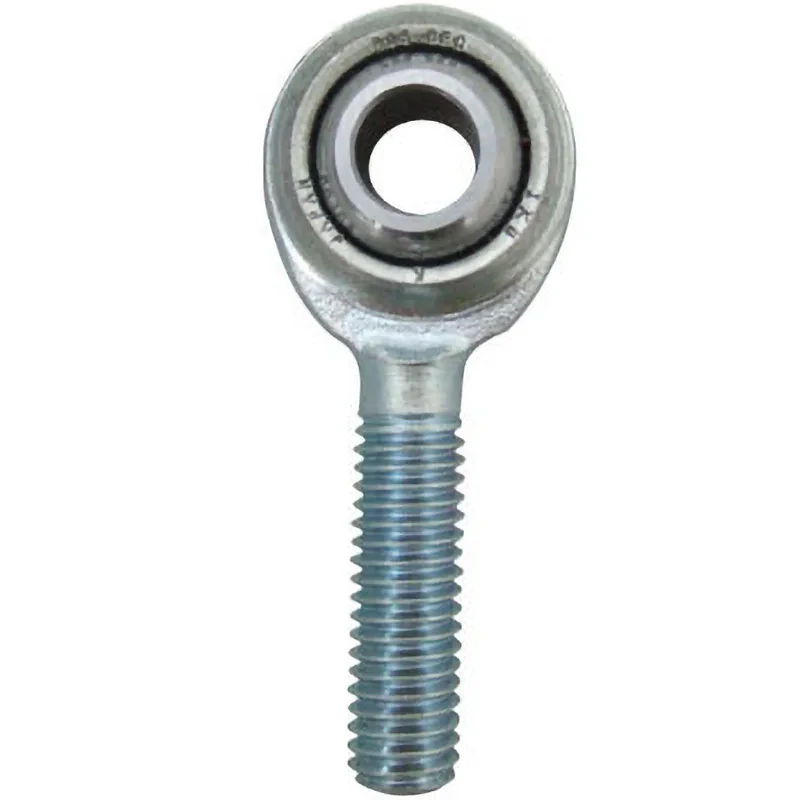

This is an automatic self-aligning spherical sliding bearing that can simultaneously handle large radial loads and bi-directional axial loads with a small capacity.
Pillow ball Rod End｣ｬs are easy to install as they have male or female threads machined into the main body.
They are used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
