Description

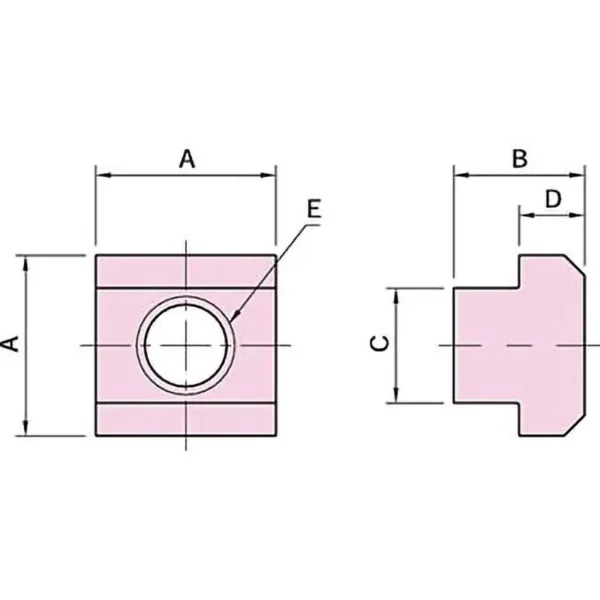

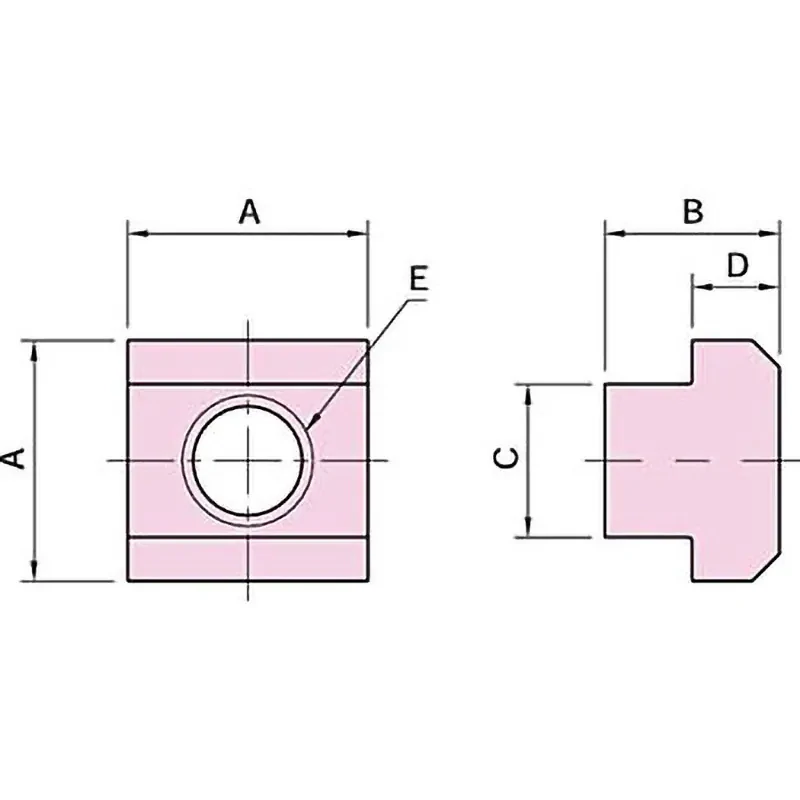

Dimensions B (mm): 20
Dimensions C (mm): 18 (-0.2/-0.6)
Dimensions D (mm): 10
Dimensions E (mm): M12*1.75
Weight (g): 70
Type: Size Reduction
Dimensions A (mm): 28
RoHS Directive (10 substances compliant): Compliant

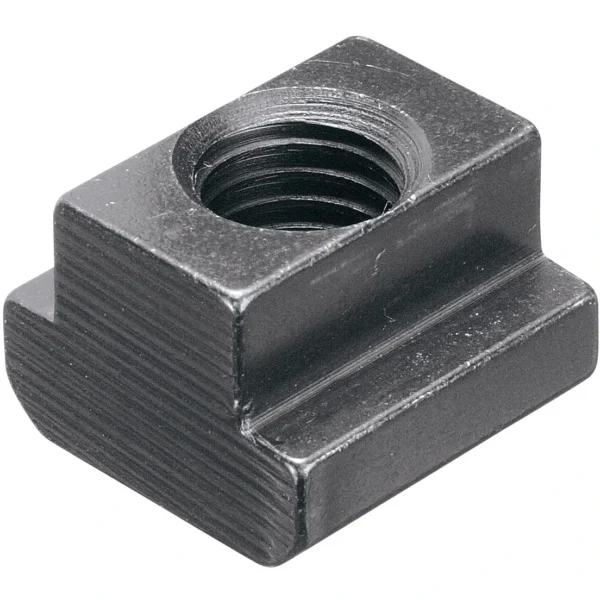

The size reduction type features a smaller male thread size than the standard T-slot male thread size. Please use it when reducing size, such as installing M12 parts onto a T-slot for M16.
This is a RoHS compliant product.
