Description
Dimension B (mm): 21
Dimension C1 (mm): 15
Dimension G (mm): M16*2
Dimension d (mm): 16
Dimension d1 (mm): 19.4
Dimension d2 (mm): 38
Dimension h (mm): 66
Dimension l1 (mm): 40
Dimension l2 (mm): 85
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 185
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Left Thread
Lubrication Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 42000
Static Load Capacity (N): 21100
Ball Diameter (mm): 28.575

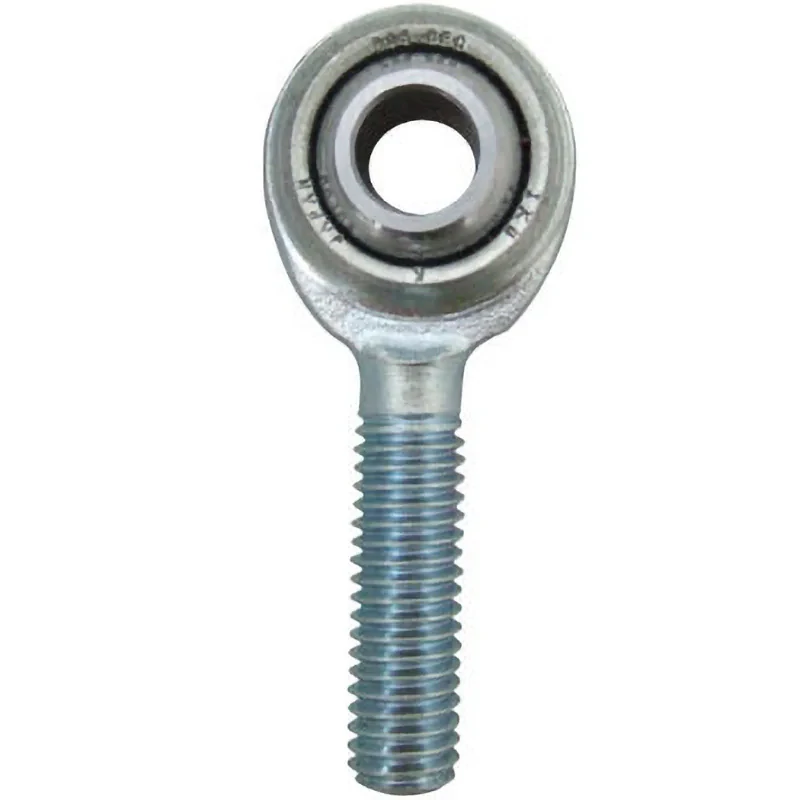

This is a self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bidirectional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has internal or external threads machined into the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
