Description

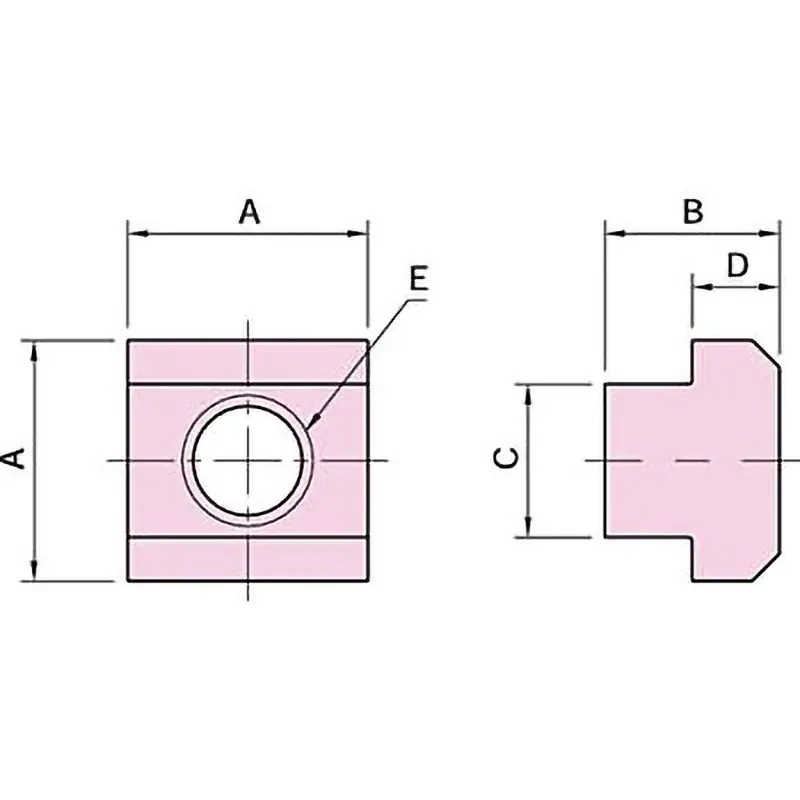

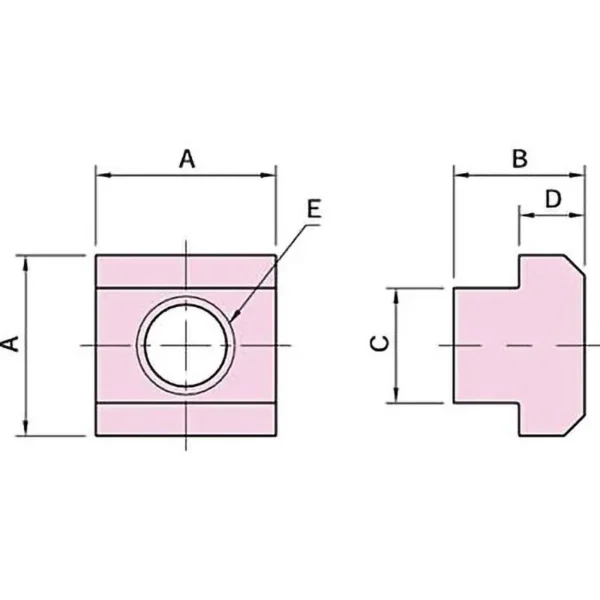

Dimensions B (mm): 16
Dimensions C (mm): 14 (-0.2/-0.6)
Dimensions D (mm): 8
Dimensions E (mm): M10*1.5
Weight (g): 35
Type Size Down
Dimensions A (mm): 22
RoHS Directive (10 substances compliant): Compliant

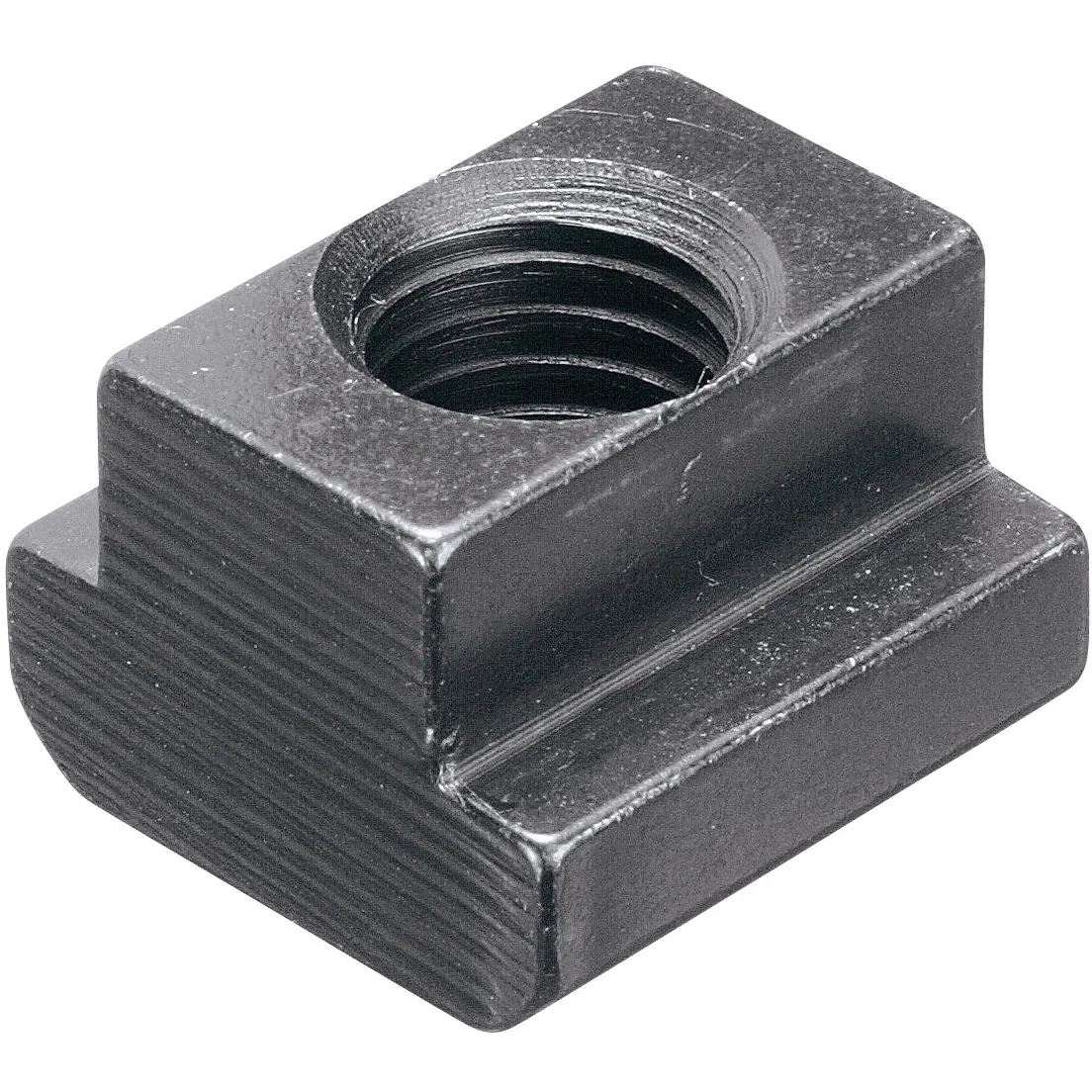

The size down type features a smaller threaded size than the standard T-slot male thread size. It can be used when downsizing, such as mounting M12 parts on an M16 T-slot.
This product complies with the RoHS directive.
