Description
Dimension B (mm): 19
Dimension C1 (mm): 13.5
Dimension G (mm): M14*2
Dimension d (mm): 14
Dimension d1 (mm): 16.9
Dimension d2 (mm): 34
Dimension h (mm): 60
Dimension l1 (mm): 36
Dimension l2 (mm): 77
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 126
Type: Male Threaded
Material (Bush): Special Brass Alloy
Thread Direction: Left Thread Type
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 33600
Static Load Capacity (N): 17200
Ball Diameter (mm): 25.400

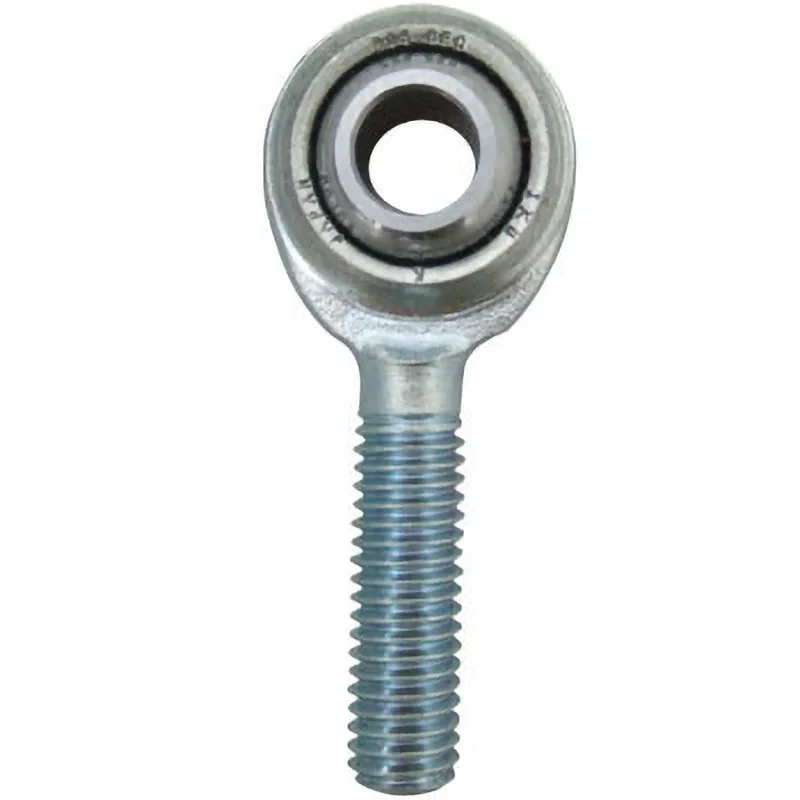

This is an automatic self-aligning spherical sliding bearing that can simultaneously handle large radial loads and bi-directional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has either internal or external threads processed on the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms for machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
