Dimension B (mm): 16
Dimension C1 (mm): 12
Dimension G (mm): M12*1.75
Dimension d (mm): 12
Dimension d1 (mm): 15.4
Dimension d2 (mm): 30
Dimension h (mm): 54
Dimension l1 (mm): 33
Dimension l2 (mm): 69
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Main Body): Zinc Chromate
Weight (g): 85
Type: With Male Thread
Material (Bushing): Special Copper Alloy
Thread Direction: Left Thread Type
Lubrication Type: Maintenance-Free
Dynamic Load Capacity (N): 26200
Static Load Capacity (N): 13700
Ball Diameter (mm): 22.225

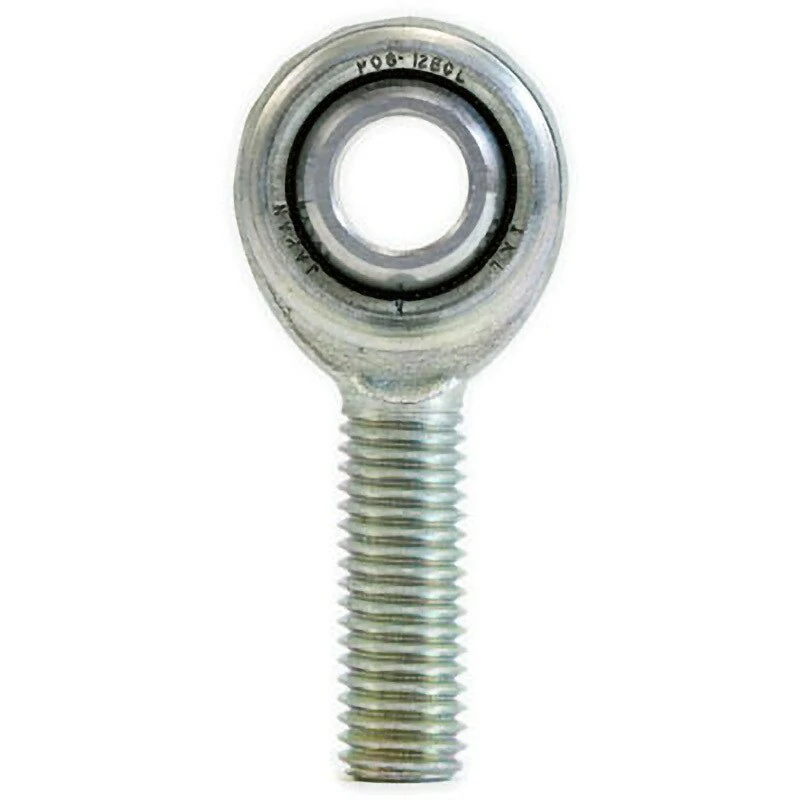

This is a self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has male or female threads processed into the main body｣ｬ making installation easy.
It is used in control mechanisms and linkage mechanisms in machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
