Description
Dimension B (mm): 14
Dimension C1 (mm): 10.5
Dimension G (mm): M10*1.5
Dimension d (mm): 10
Dimension d1 (mm): 12.9
Dimension d2 (mm): 26
Dimension h (mm): 48
Dimension l1 (mm): 29
Dimension l2 (mm): 61
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Main Body): Zinc Chromate
Weight (g): 54
Type: Male Threaded
Material (Bush): Special Copper Alloy
Thread Direction: Left Thread
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 19600
Static Load Capacity (N): 10500
Ball Diameter (mm): 19.050

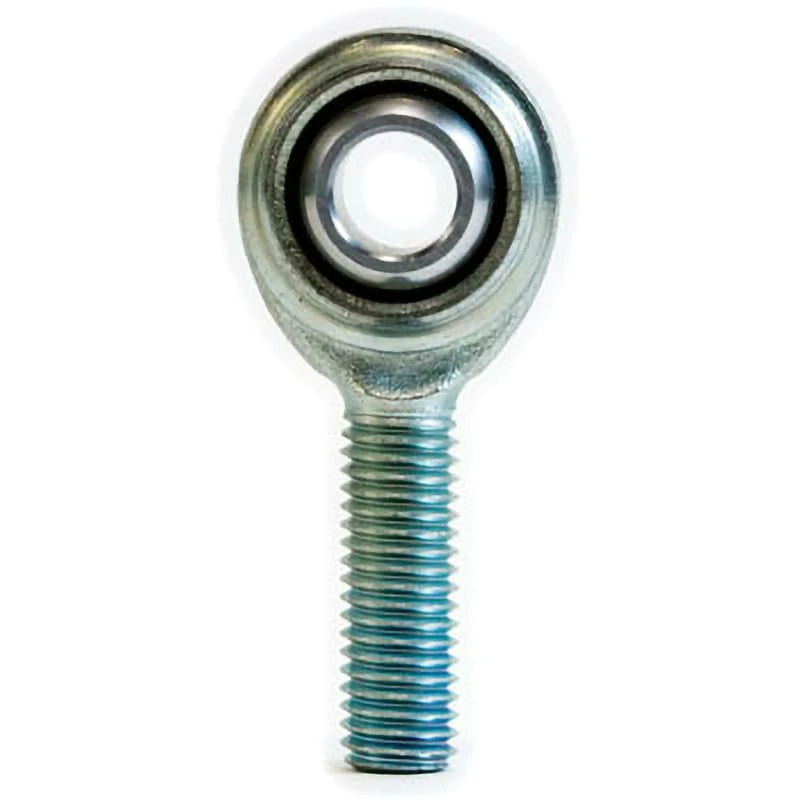

This is an automatically self-aligning spherical sliding bearing that can bear large radial loads and bi-directional axial loads simultaneously with a small capacity.
Pillow ball Rod End｣ｬs are easy to install as they are processed with male or female threads on the main body.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machines｣ｬ and packaging machines.
