Description

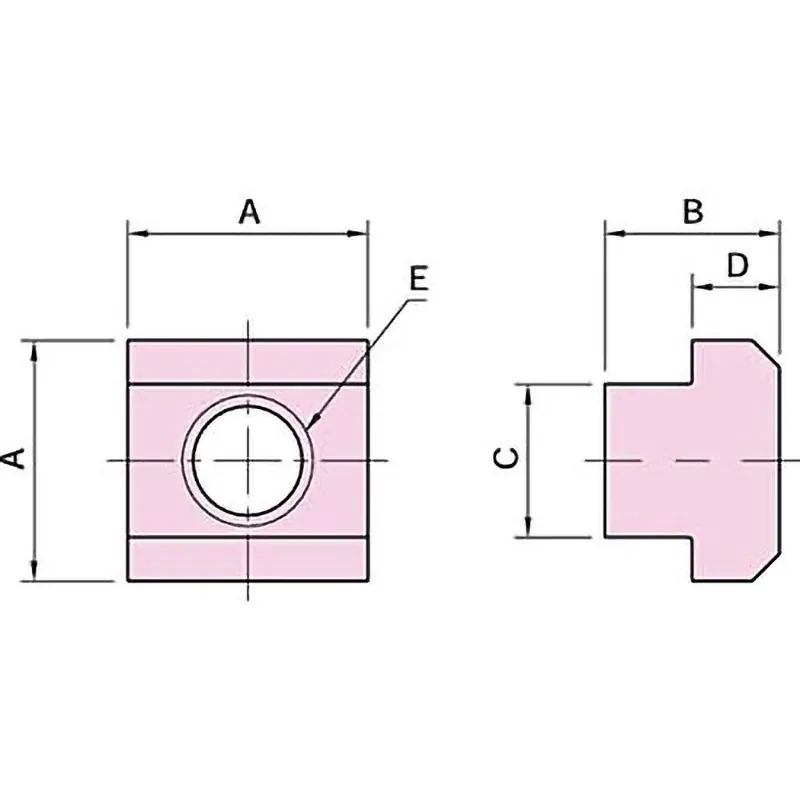

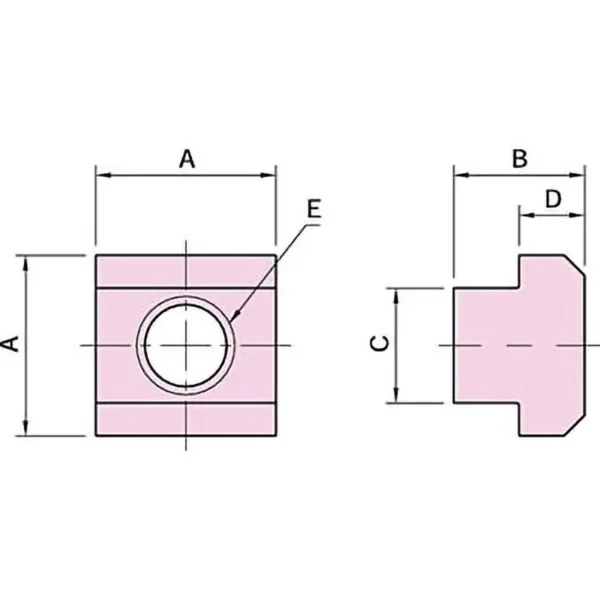

Dimensions B (mm): 36
Dimensions C (mm): 27.6 (-0.2/-0.6)
Dimensions D (mm): 18
Dimensions E (mm): M24*3
Weight (g): 330
Type: Standard
Dimensions A (mm): 44
RoHS Directive (10 substances compliance): Compliant

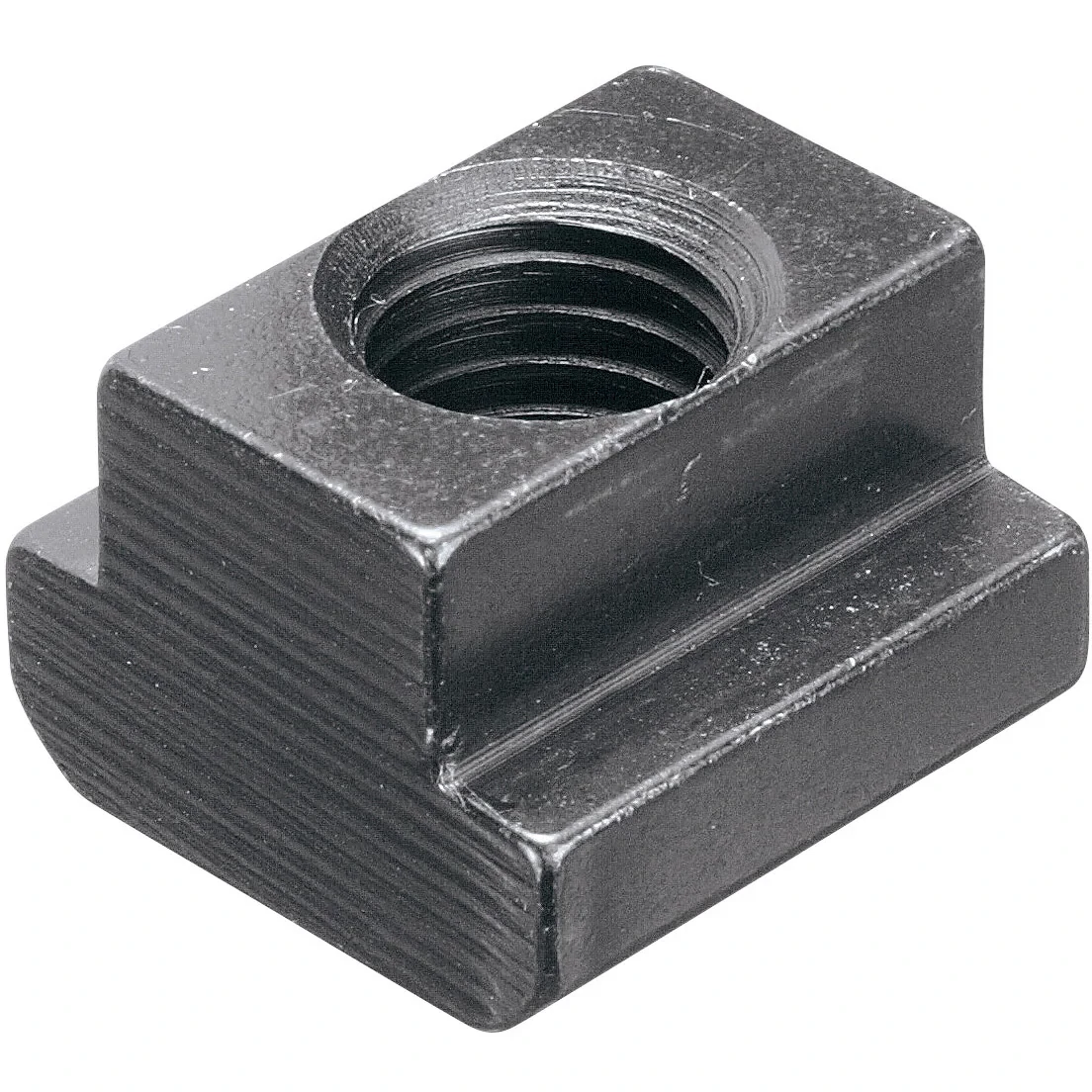

The size reduction type features a smaller threaded size than the standard T-slot thread size. It can be used for size reduction, such as attaching M12 components to M16 T-slots.
This product is compliant with the RoHS Directive.
