Description
Dimension B (mm): 12
Dimension C1 (mm): 9
Dimension G (mm): M8*1.25
Dimension d (mm): 8
Dimension d1 (mm): 10.4
Dimension d2 (mm): 22
Dimension h (mm): 42
Dimension l1 (mm): 25
Dimension l2 (mm): 53
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome plated (spherical inner ring)
Material (Body): Zinc Chromate
Weight (g): 32
Type: Male Threaded
Material (Bush): Special Copper Alloy
Thread Direction: Left Thread
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 14000
Static Load Capacity (N): 7760
Ball Diameter (mm): 15.875

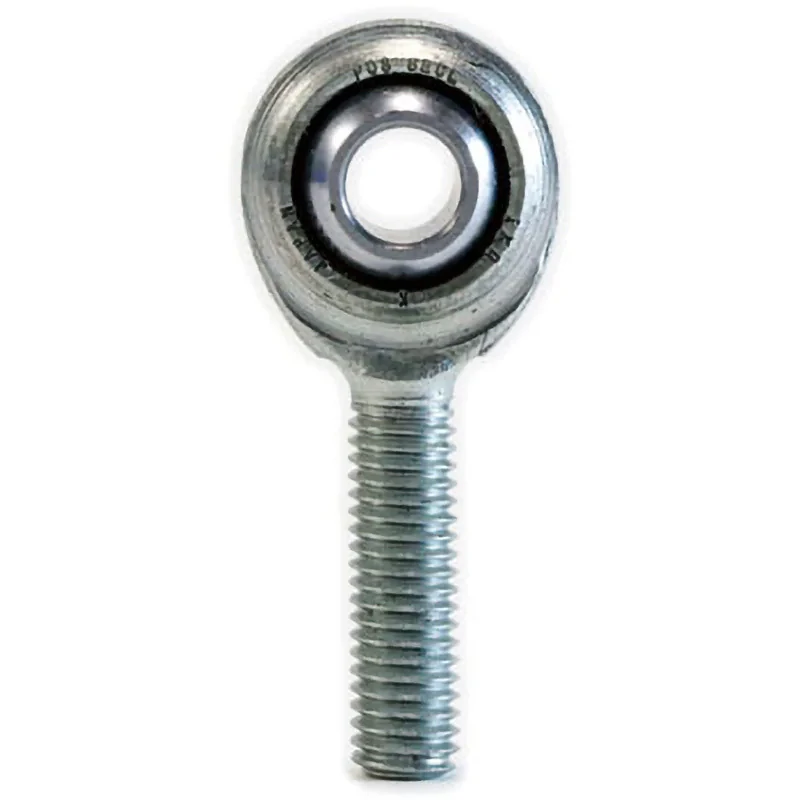

This is an automatic self-aligning spherical sliding bearing that can simultaneously load large radial loads and bi-directional axial loads with a small capacity.
Pillow ball Rod End｣ｬs are easy to install because they have internal or external threads processed on the body.
Used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
