Description

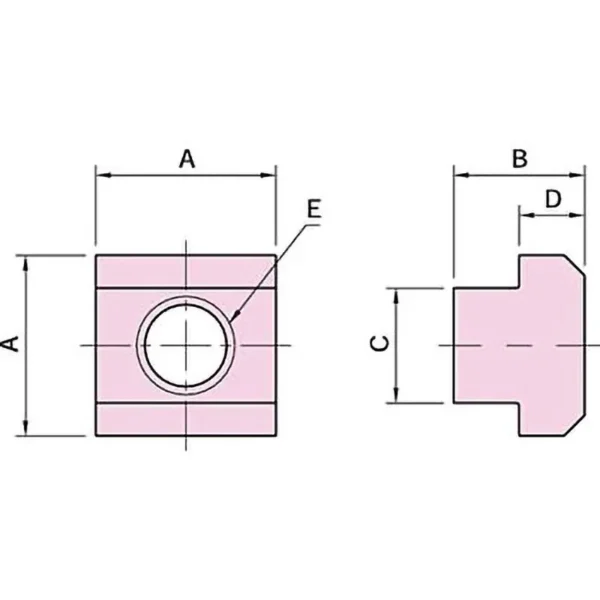

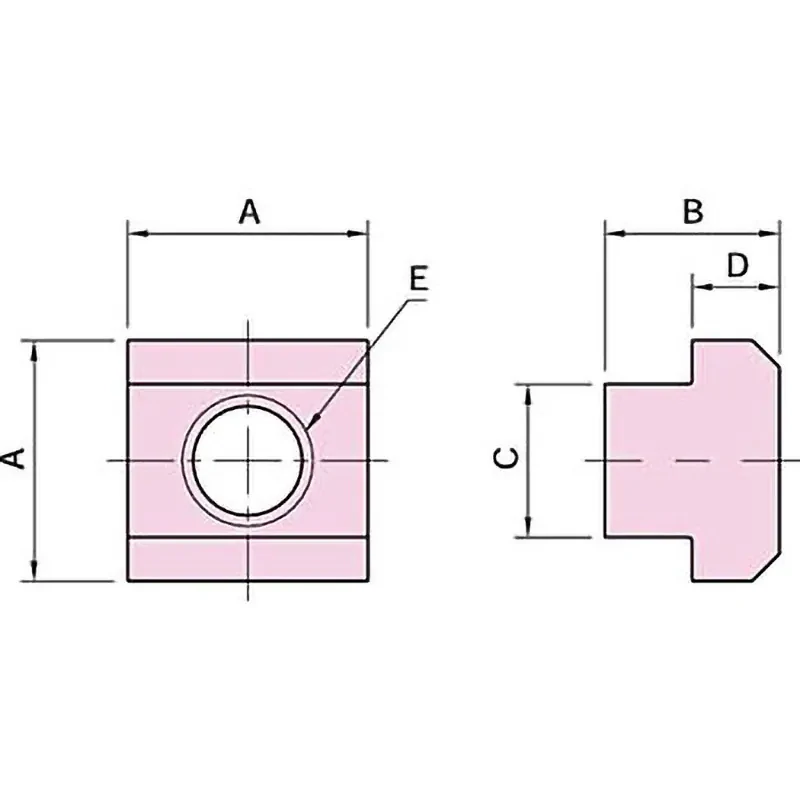

Dimensions B (mm): 20
Dimensions C (mm): 18 (-0.2/-0.6)
Dimensions D (mm): 10
Dimensions E (mm): M16*2
Weight (g): 70
Type: Standard
Dimensions A (mm): 28
RoHS Directive (10 substances compliance): Compliant
The size-down type has a smaller internal thread size compared to standard T-slot sizes. It is useful for applications such as mounting M12 components onto T-slots designed for M16.
This product complies with the RoHS directive.
